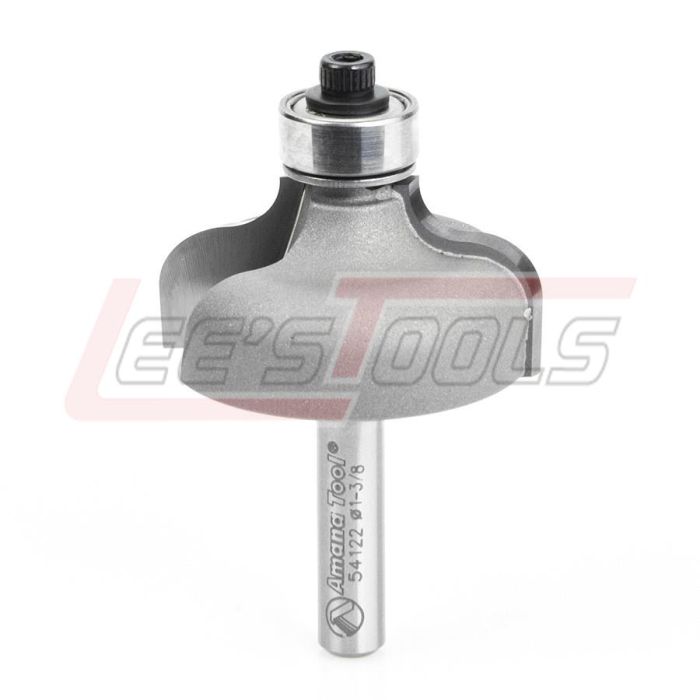

AMANA TOOL 54122 OGEE 1-3/8 DIAMETER 1/4 SHANK
$49.54
In stock
SKU
35396
Ogee Router Bits
2 Flute
with Ball Bearing Guide
The ogee is one
the basic shapes used in moldings anddecorative profiles. An S-shaped curve, it
is convex at the top fairing downinto a concave (shown inverted). The ogee bit
is characterized by the concaveshape coming off the pilot bearing. Using the
optional 3/8" bearingproduces a profile with a fillet at the convex end of the
curve. Use in ahandheld or table-mounted router.
Key Specifications
|
D
|
R1 |
R2 |
B |
d |
L |
Tool No. |
|
1-1/8 |
5/32 |
5/32 |
1/2 |
1/4 |
2 |
54120 |
|
1-3/8 |
1/4 |
3/16 |
11/16 |
1/4 |
2-3/16 |
54122 |
|
1-1/8 |
5/32 |
5/32 |
1/2 |
1/2 |
2-3/8 |
54124 |
|
1-3/8 |
1/4 |
3/16 |
11/16 |
1/2 |
2-9/16 |
54126 |
A- Standard 1/2"
Bearing #47706 (included)
B- Optional 3/8"
Bearing #47702 (order separately)
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54122 |
