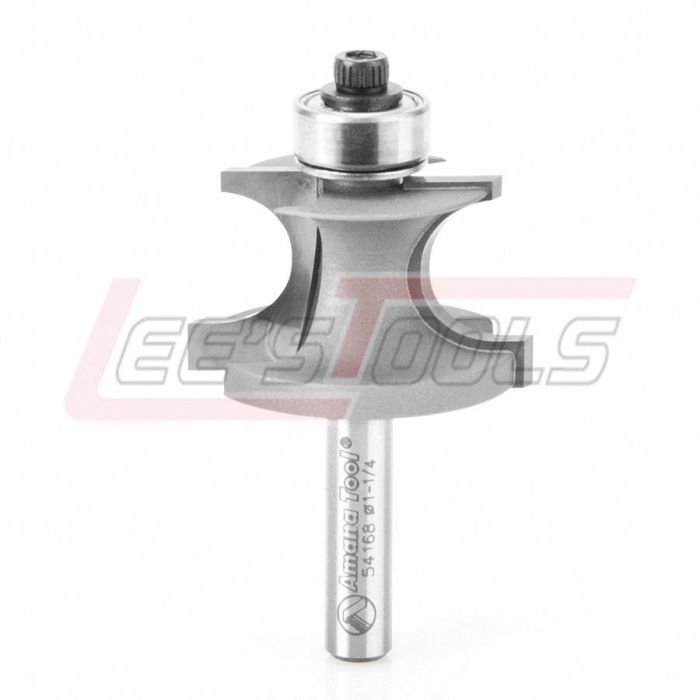

AMANA TOOL 54168 CORNER BEADING 1/4" RAD 1/4 SK
$55.46
In stock
SKU
35439
Corner Beading
RouterBits
2 Flute
with Ball Bearing Guide
Produce three
slightly different profiles using this bit€”anedge bead with or without a fillet
and a full corner bead€”by altering the bitextension or rolling the workpiece
between passes. This group of hard-to-findtools is particularly suitable for
antique reproductions and restorationprojects. Use in a handheld or
table-mounted router.
Key Specifications
|
R |
D |
B1 |
B |
d |
L |
Tool No. |
|
1/16 |
45/64 |
1/8 |
5/16 |
1/4 |
1-11/16 |
54161 |
|
3/32 |
49/64 |
3/16 |
25/64 |
1/4 |
1-3/4 |
54163 |
|
1/8 |
7/8 |
1/4 |
9/16 |
1/4 |
2-1/8 |
54160 |
|
1/8 |
7/8 |
1/4 |
9/16 |
1/2 |
2-1/2 |
54162 |
|
3/16 |
1-1/8 |
3/8 |
11/16 |
1/4 |
2-1/4 |
54164 |
|
3/16 |
1-1/8 |
3/8 |
11/16 |
1/2 |
2-5/8 |
54166 |
|
1/4 |
1-1/4 |
9/16 |
3/4 |
1/4 |
2-1/4 |
54168 |
|
1/4 |
1-1/4 |
9/16 |
3/4 |
1/2 |
2-5/8 |
54170 |
|
3/8 |
1-1/2 |
3/4 |
1 |
1/2 |
2-7/8 |
54172 |
Replacement
bearing for #54160-#54163 use #47706.
All other tools
use #47716.
Max RPM Guide for Amana Tool® Router
Bits
Do not exceed the
maximum RPM shown for the particular tool you are using.
Max RPM for
symmetrical tool only!
No exceda la
maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la
herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than
50) |
28,000 |
|
2" - 2-3/8"
(50-60mm) |
22,000 |
|
2-3/8" - 2-3/4"
(60-70mm) |
19,000 |
|
2-3/4" - 3-1/4"
(70-80mm) |
16,000 |
|
3-1/4" - 3-5/8"
(80-90mm) |
15,000 |
|
3-5/8" <
(90-100mm) |
13,000 |
Note:
Please also refer to laser etching on router
bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54168 |
