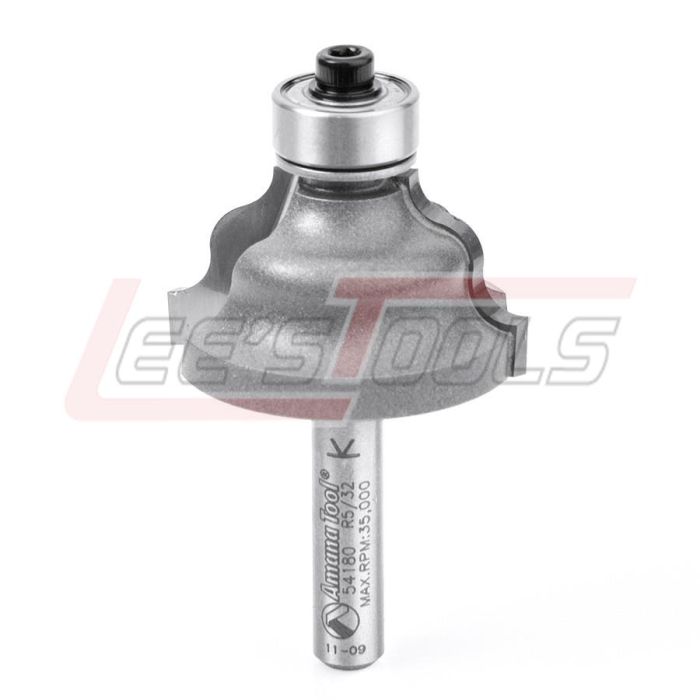

AMANA TOOL 54180 WAVY EDGE BIT 1/4 SHANK
$58.20
In stock
SKU
35445
Wavy Edge Router Bits
2 Flute
with Ball Bearing Guide
This bit produces
an undulating curve with two convex forms flanking a concave form. All the radii
are equal. A shoulder on the cutter can form a fillet, depending upon
depth-of-cut setting. Use in a handheld or a table-mounted router.
Key Specifications
|
D |
R |
B |
d |
L |
Tool No. |
|
1-1/4 |
5/32 |
11/16 |
1/4 |
2-1/4 |
54180 |
|
1-1/4 |
5/32 |
11/16 |
1/2 |
2-5/8 |
54182 |
Replacement
bearings #47706.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54180 |
