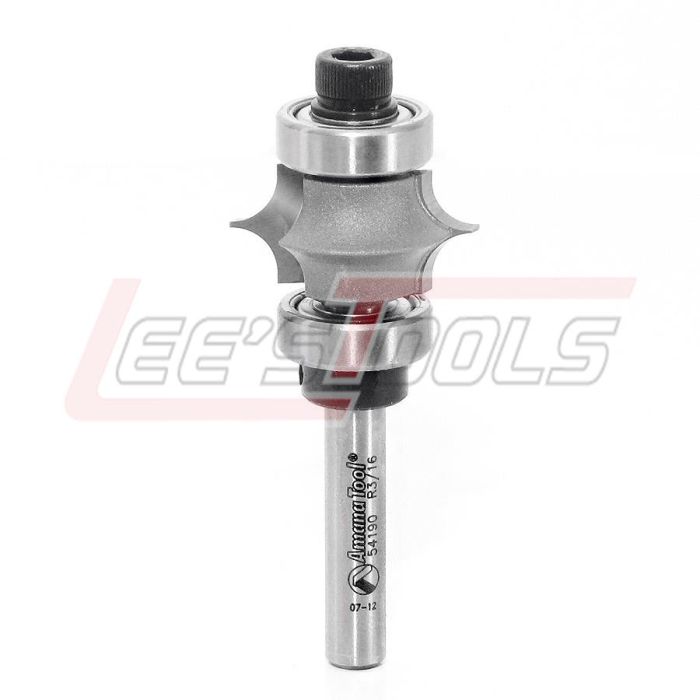

AMANA TOOL 54190 FULL BEAD 3/16 RAD 1/4 SHANK
$65.70
In stock
SKU
35453
Leaf-Edge Router
Bits
2 Flute
with Double Ball Bearing Guide
In one pass, this
router bit forms a round-edged groove near the corner of the work piece. A
second pass on the adjoining face yeilds a delicate leaf-shaped corner bead. Use
in handheld or table-mounted router.
Key Specifications
|
R |
D |
B |
d
|
L |
Tool No. |
|
3/16 |
1 |
1/2 |
1/4 |
2-1/2 |
54190 |
|
1/4 |
1-1/8 |
5/8 |
1/4 |
2-5/8 |
54192 |
Replacement
bearing for #47712 (2 required). Replacement collar #47724
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54190 |
