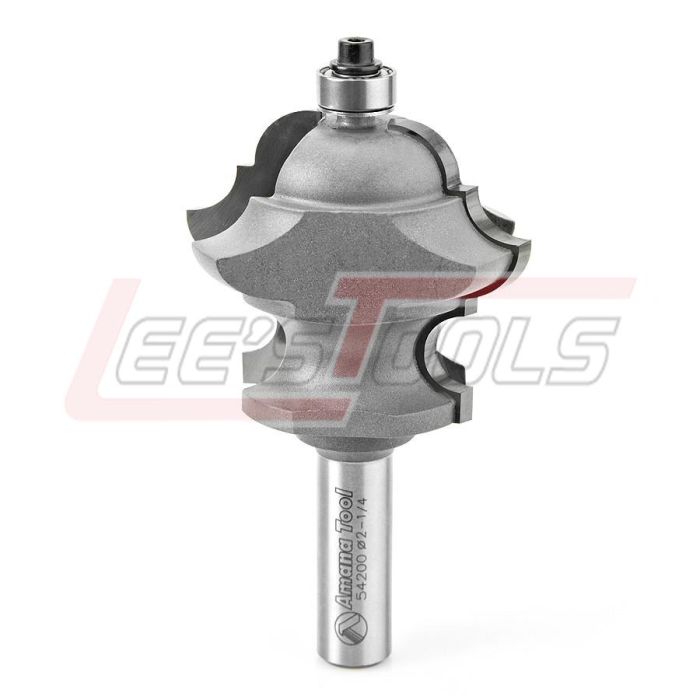

AMANA TOOL 54200 CLASSICAL MULTI FORM 1/2 SHANK
$93.30
In stock
SKU
35457
Multi-Form Router
Bits
2 Flute
with Ball Bearing Guide
This tool was
designed to cut over 40 different molding patterns. By making simple adjustments
to the cutter height and fence position, and making two or more passes, you can
achieve a wide variety of profiles and architectural details. Recommended for
use in a router table. Available with 1/2" shank only. Tool No. 54198 is a new
minature version of the multi-form bit
Key Specifications
|
R1 |
R2 |
R3 |
D |
B |
d |
L |
Tool No. |
|
23/64 |
2/64 |
1/4 |
2-1/4 |
1-7/8 |
1/2 |
4 |
54200 |
|
3/16 |
9/64 |
1/8 |
1-1/4 |
1 |
1/2 |
2-3/4 |
54198 |
Router bit
replacement bearings: - #54200 use #47706. #54198 use #47702.
Note: Old style
#54200 (prior to 12/95) uses a #47705 (5MMx13MM) bearing.
Warning: Maximum RPM 12!
= 12,000
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54200 |
