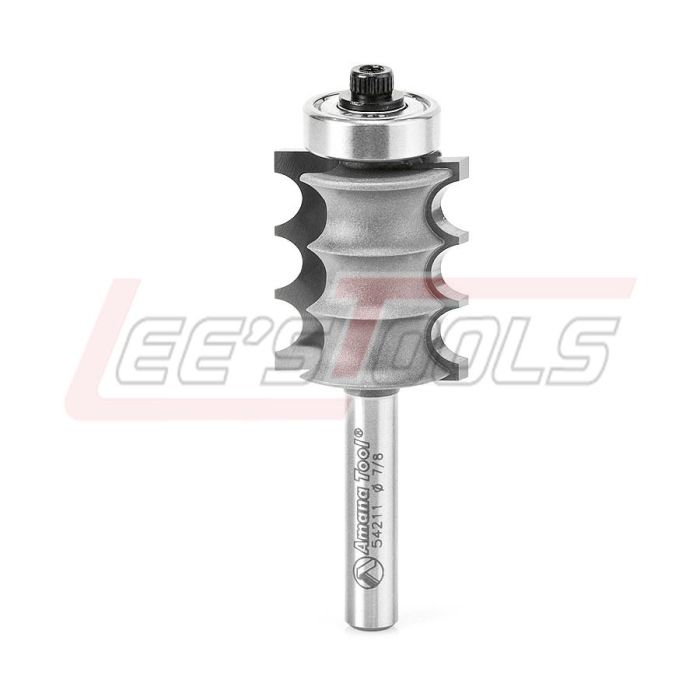

AMANA TOOL 54211 MULTI EDGE FORMING 1/4 SHANK
$53.81
In stock
SKU
35465
Triple Beading/Triple Fluting Router Bits
2 Flute
with Ball Bearing Guide
Three uniform
beads or flutes are performed in one pass withthese bits. Produce reeded or
fluted pilasters or table legs referencing opposite faces of the workpiece. Can
be used in a handheld or table-mounted router.
Key Specifications
|
D
|
TYPE |
R |
B |
d |
L |
Tool No. |
|
7/8 |
Bead |
1/8 |
1 |
1/4 |
2-5/8 |
54211 |
|
7/8 |
Bead |
1/8 |
1 |
1/2 |
3 |
54213 |
|
7/8 |
Flute |
1/8 |
1 |
1/4 |
2-5/8 |
54215 |
|
7/8 |
Flute |
1/8 |
1 |
1/2 |
3 |
54217 |
Replacement
Bearing #47716
Max RPM Guide for Amana Tool® Router
Bits
Do not exceed the
maximum RPM shown for the particular tool you are using.
Max RPM for
symmetrical tool only!
No exceda la
maxima velocidad (RPM) indicada para cada herramienta.
Máximo RPM para la
herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than
50) |
28,000 |
|
2" - 2-3/8"
(50-60mm) |
22,000 |
|
2-3/8" - 2-3/4"
(60-70mm) |
19,000 |
|
2-3/4" - 3-1/4"
(70-80mm) |
16,000 |
|
3-1/4" - 3-5/8"
(80-90mm) |
15,000 |
|
3-5/8" <
(90-100mm) |
13,000 |
Note: Please also
refer to laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54211 |
