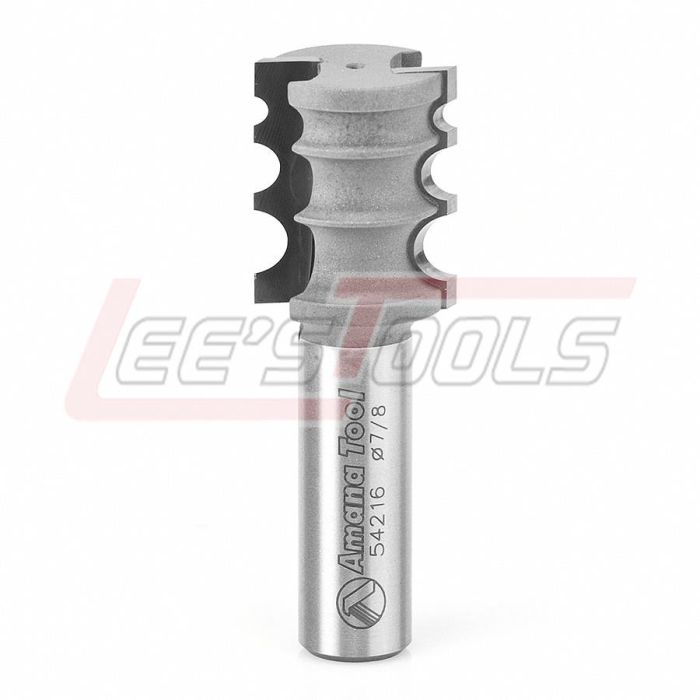

AMANA TOOL 54216 MULTI-BEAD MOULDING 1/2 SHANK
$46.65
In stock
SKU
35470
Variable Beading Router Bits
2 Flute
Three different radii of beads are stacked on this one bit.
Rout all three on an edge, or use it to nose thin stock. Router-table use
recommended for best control, but use in a handheld router is possible. Must be
used with an edge guide.
|
R1 |
R2 |
R3 |
D |
B |
d |
L |
Tool No. |
|
9/64 |
7/64 |
1/16 |
7/8 |
1-1/6 |
1/2 |
2-5/8 |
54216 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54216 |
