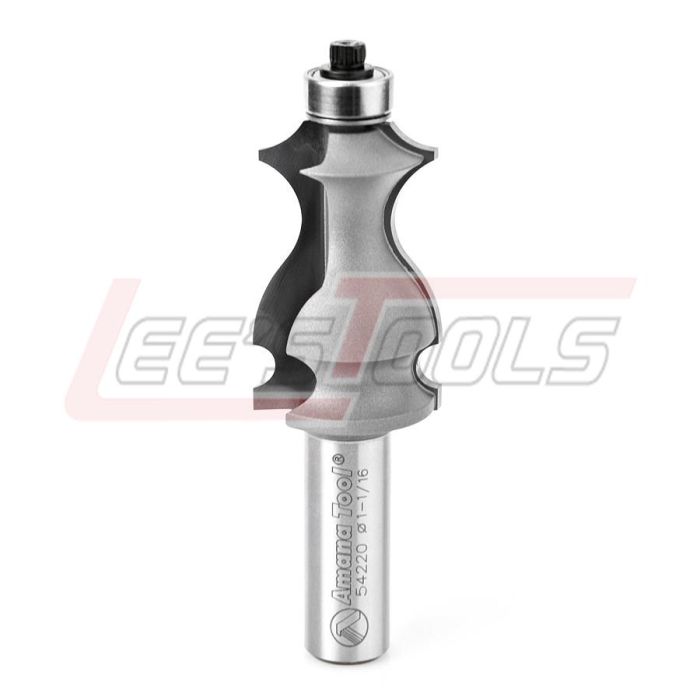

AMANA TOOL 54220 CLASSICAL MOULDING 1/2 SHANK
$62.48
In stock
SKU
35474
Architectural Molding Router Bits
2 Flute With Ball Bearing Guide
Many different profiles for cutting base molding,
chair rail, door & window casing, cabinet molding and other millwork.
Note: Tool #'s 54250 and 54252 do not have
bearings.
Replacement bearing for #'s 54234, 54236, 54238
use #47712.
Replacement bearing for all others use #47706.
Warning: Maximum RPM
14!
= 14,000;
16! = 16,000;
18!
= 18,000
|
--- |
Type |
D |
D1 |
R1 |
R2 |
R3 |
R4 |
B |
B1 |
d |
L |
Tool No. |
|
--- |
#2 |
7/8 |
- |
5/32 |
5/32 |
5/16 |
--- |
1-3/8 |
--- |
1/2 |
3-3/8 |
54204 |
|
--- |
#3 |
1 |
- |
9/64 |
3/16 |
25/32 |
15/64 |
1-5/8 |
--- |
1/2 |
3-1/4 |
54218 |
|
--- |
#4 |
1 |
- |
1/8 |
7/8 |
3/8 |
--- |
1-11/16 |
--- |
1/2 |
3-1/4 |
54220 |
|
14! |
#5 |
1-1/2 |
- |
1/4 |
--- |
--- |
--- |
2 |
--- |
1/2 |
3-1/2 |
54250 |
|
--- |
#7 |
1 |
- |
9/64 |
3/32 |
3/4 |
9/32 |
1-3/4 |
--- |
1/2 |
3-5/8 |
54219 |
|
18! |
#8 |
1-3/8 |
- |
1/8 |
3/32 |
1/4 |
7/16 |
1-5/8 |
--- |
1/2 |
3-1/2 |
54222 |
|
18! |
#9 |
1-3/8 |
7/8 |
1/16 |
5/32 |
5/32 |
--- |
1-5/8 |
--- |
1/2 |
3-1/2 |
54224 |
|
--- |
#12 |
1-3/16 |
- |
1/2 |
1/4 |
--- |
--- |
1-3/8 |
--- |
1/2 |
3-1/4 |
54234 |
|
18! |
#13 |
1-3/4 |
- |
1/8 |
--- |
--- |
--- |
1-1/2 |
--- |
1/2 |
3-1/2 |
54236 |
Products shown in
Bold indicate most popular items.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54220 |
