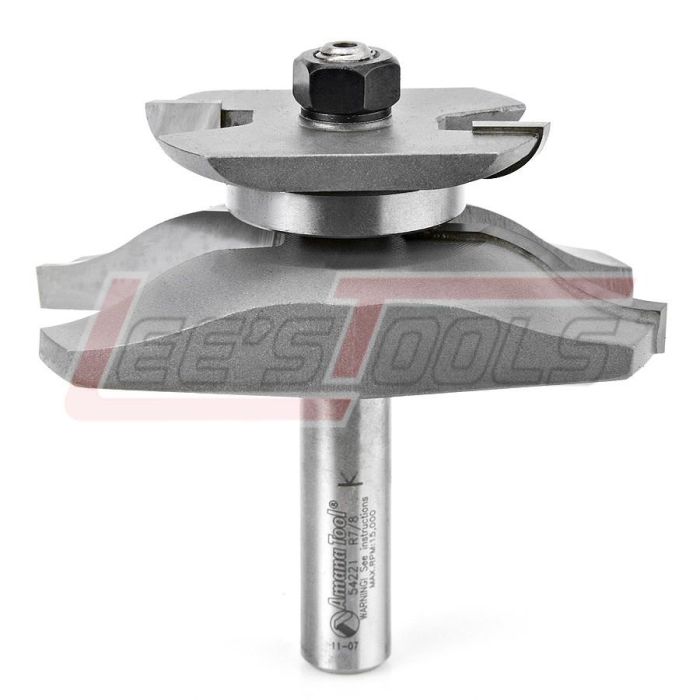

AMANA TOOL 54221 OGEE RAISED PANEL /BACK CUTTER
$198.75
In stock
SKU
35476
Raised Panel w/Back Cutter
2 Flute With Ball Bearing Guide
Similar to our standard horizontal raised panel series but
with new back cutters to cut the inside of the panel. Includes two different
bearings to allow for safer two-pass operation. Use with router table only.
Replacement bearing #47713 (8MMx16MM) and #47763
(8MMx1-1/4").
Back Cutter #55435=1/4" Kerf; 5/16 Radius Cutter.
Warning:
Maximum RPM 12!
= 12,000
|
|
*'A' Reveal |
**'A1' |
a° |
D |
D1 |
R |
B |
B1 |
d |
L |
Tool No. |
|
12! |
1-3/8 |
1-1/16 |
15° |
3-3/8 |
2-1/8 |
5/16 |
1-1/16 |
1/2 |
1/2 |
2-15/16 |
54227 |
Raised Panel w/Back Cutter
2 Flute With Ball Bearing Guide
Replacement bearing #47713 (8MMx16MM) and #47763
(8MMx1-1/4").
Back Cutter #55435=1/4" Kerf; 5/16 Radius Cutter.
Warning: Maximum RPM
12! = 12,000
|
|
*'A' Reveal |
**'A1' |
D |
D1 |
R1 |
R2 |
B |
B1 |
d |
L |
Tool No. |
|
12! |
1-3/8 |
1-1/16 |
3-3/8 |
2-1/8 |
7/8 |
5/16 |
1-3/16 |
5/8 |
1/2 |
3-1/16 |
54221 |
Raised Panel w/Back Cutter
2 Flute With Ball Bearing Guide
Replacement bearing #47713 (8MMx16MM) and #47763
(8MMx1-1/4").
Back Cutter #55435=1/4" Kerf; 5/16 Radius Cutter.
Warning: Maximum RPM
12! = 12,000
|
|
*'A' Reveal |
**'A1' |
D |
D1 |
R1 |
R2 |
B |
B1 |
d |
L |
Tool No. |
|
12! |
1-3/8 |
1-1/16 |
3-3/8 |
2-1/8 |
1-9/16 |
5/16 |
1-1/16 |
1/2 |
1/2 |
2-15/16 |
54229 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54221 |
