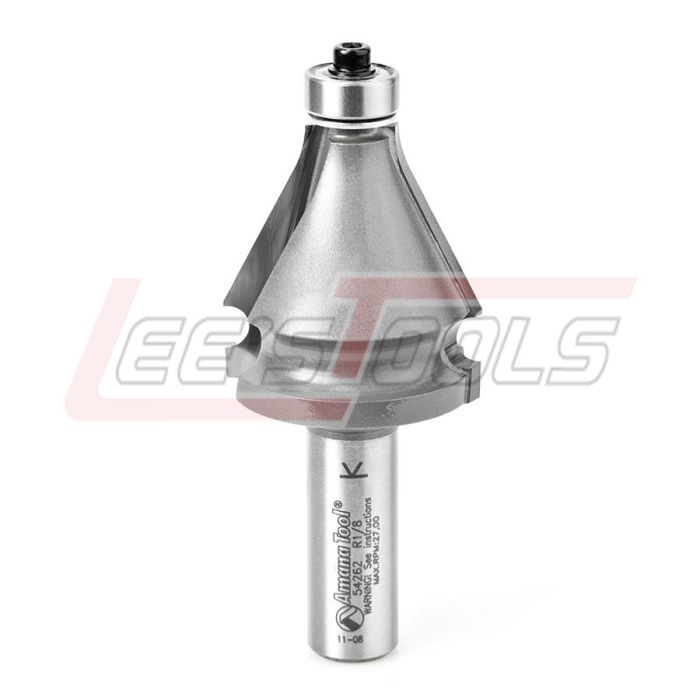

AMANA TOOL 54262 HANDRAIL EDGE BIT 1/2 SHANK
$93.30
In stock
SKU
35497
Handrail Router Bits
2 Flute With Ball Bearing Guide
These special router bits are used for cutting the side
profile of handrails.
Replacement bearings: 54262 use 47706.
Replacement bearings: 54268 & 54269 use 47716.
|
D |
R1 |
R2 |
B |
d |
L |
Tool No. |
|
1-3/8 |
2/64 |
19/32 |
1-1/2 |
1/2 |
3-3/8 |
54262 |
|
1-1/4 |
9/64 |
1 |
1-1/2 |
1/2 |
3-3/8 |
54268 |
|
1-1/4 |
3/8 |
1/2 |
1-1/2 |
1/2 |
3-3/8 |
54269 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54262 |
