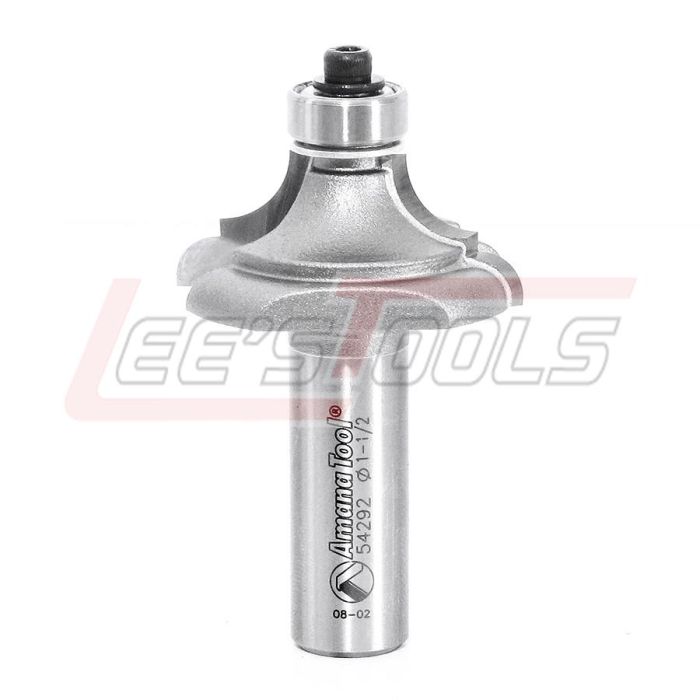

AMANA TOOL 54292 EDGE FORMING BIT 1/2 SHANK
$64.95
In stock
SKU
35512
Classical Cove &Bead Router Bits
2 Flute
with Ball Bearing Guide
The positions of
the bead and the cove are reversed on thisseries of bits, with the bead coming
off the bearing. With the optional3/8" pilot bearing, the bit produces a fillet
at the base of the bead. Usein either handheld or table-mounted router. Largest
diameter bits should be runat reduced speed.
Key Specifications
|
D |
R |
R1 |
B |
d |
L |
Tool No. |
|
|
1-1/8 |
5/32 |
5/32 |
1/2 |
1/4 |
2 |
54128 |
|
|
1-3/8 |
1/4 |
3/16 |
11/16 |
1/4 |
2-3/16 |
54130 |
|
|
1-1/8 |
5/32 |
5/32 |
1/2 |
1/2 |
2-3/8 |
54132 |
|
|
1-3/8 |
1/4 |
3/16 |
11/16 |
1/2 |
2-9/16 |
54134 |
|
|
1-1/2 |
3/16 |
5/16 |
5/8 |
1/2 |
2-1/2 |
54292 |
|
|
18! |
2 |
11/32 |
11/32 |
1-1/4 |
1/2 |
3-1/8 |
54100 |
|
18! |
2 |
3/8 |
3/8 |
1 |
1/2 |
2-3/4 |
54135 |
A- Standard 1/2"
Bearing #47706 (included)
B- Optional 3/8"
Bearing #47702 (Order Separately)
Replacement
bearings #47706.
Warning: Maximum RPM 18! =18,000
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54292 |
