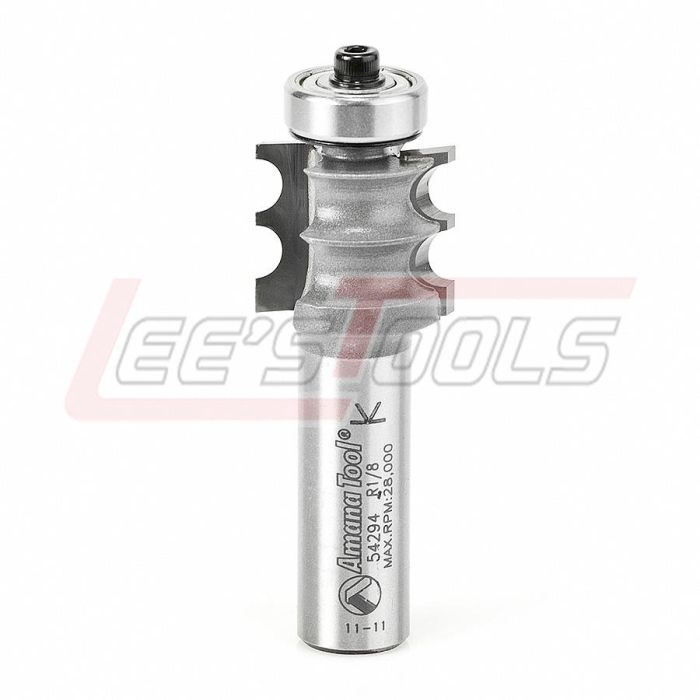

AMANA TOOL 54294 EDGE FORMING BIT 1/2 SHANK
$78.71
In stock
SKU
35515
Double Beading
Router Bits
2 Flute
with Ball Bearing Guide
Produce pairs of
beads on the edges of shelving or narrow molding strips. Use in a handheld or
table-mounted router.
Key Specifications
|
D
|
R
|
B |
d |
L |
Tool No. |
|
7/8 |
1/8 |
3/4 |
1/2 |
2-5/8 |
54294 |
Replacement
bearing for #47716
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54294 |
