AMANA TOOL 54314 TAMBOUR 3 PCS. BIT SET 1/2 SHK
$214.58
In stock
SKU
35528
Tambour Door / Appliance Garage Router Bit Set
U.S. Patent no. 7,810,532, No
Cloth, glue or wires.

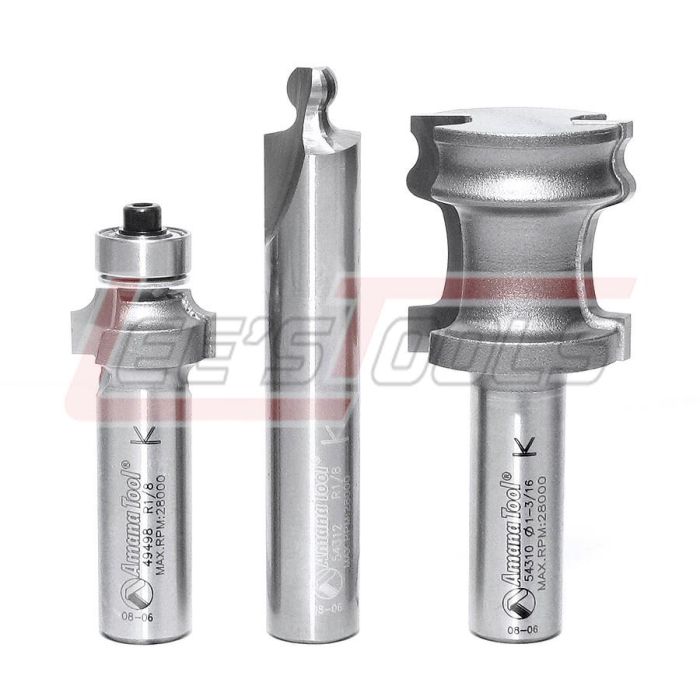

This unique 3-piece router bit set no. 54314 shapes
tambours that interlock with a ball-and-socket joint. Unlike ordinary tambours,
there is no need for cloth, glue or wires.
The set is also easy to set up and use. The first bit
shapes the face of the stock; cutting from each face completes the contour of
the ball. Afterwards, a second bit is used to shape the socket. A third bit in
the set is used to shape the end of the tambour which provides a place to mount
a pull for opening the completed tambour.
The Amana/Lonnie Bird tambour bit set is patent pending &
makes it easy to create attractive flexible tambours for roll-top desks,
breadboxes, or kitchen storage areas. Set comes with full color instruction
manual for creating a breadbox.
Each slat measures
approximately 1/2" x 1".
The minimum radius
for the tambour door is 3-1/2"
Recommended Maximum
Width for Tambour Strips:
Do not exceed 5ft or 60in in
length, otherwise they may sag under their own weight.
|
ØD |
R |
R1 |
B |
Ød |
L |
Max RPM |
Tool No. |
|
3 Piece Set |
--- |
--- |
--- |
--- |
--- |
28,000 |
54314 |
|
1-3/16" |
1/8" |
5/64" |
1-1/4" |
1/2" |
2-3/4" |
28,000 |
54310 |
|
1/2" |
5/64" |
— |
3/8" |
1/2" |
3" |
28,000 |
54312 |
|
3/4" |
1/8" |
— |
3/8" |
1/2" |
2-5/16" |
28,000 |
49498 |
Each slat measures approximately 1/2" x 1".
The minimum radius for the tambour door is 3-1/2"
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54314 |
