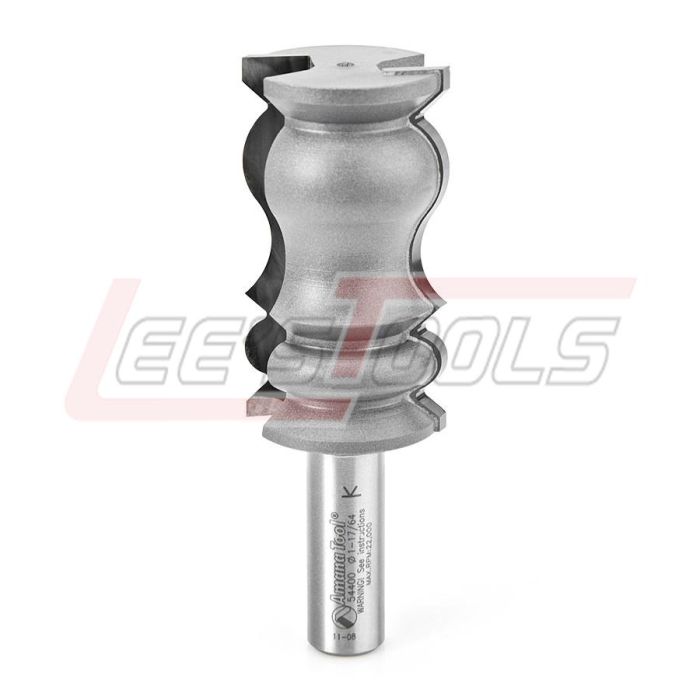

AMANA TOOL 54400 CROWN MOULDING BIT TYPE #1
$85.43
In stock
SKU
35539
Crown Molding
RouterBits
2 Flute
Special series of
tools for crown or architectural molding.Recommended for use in a router table
using a heavy duty multi-speed router andfence.
Key Specifications
|
D |
R1 |
R2 |
B |
d
|
L |
Tool No. |
|
|
16! |
1-1/4 |
3/16 |
7/16 |
2-1/4 |
1/2 |
3-3/4 |
54400 |
|
16! |
1-1/4 |
1/2 |
3/4 |
2-1/4 |
1/2 |
3-3/4 |
54402 |
|
16! |
1-1/4 |
17/32 |
17/32 |
2-1/4 |
1/2 |
3-3/4 |
54404 |
|
16! |
1-1/4 |
1-3/16 |
--- |
2-1/4 |
1/2 |
3-3/4 |
54406 |
|
16! |
1-1/4 |
5/32 |
15/64 |
2-1/4 |
1/2 |
3-3/4 |
54408 |
Products shown in Bold indicate most popular items.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54400 |
