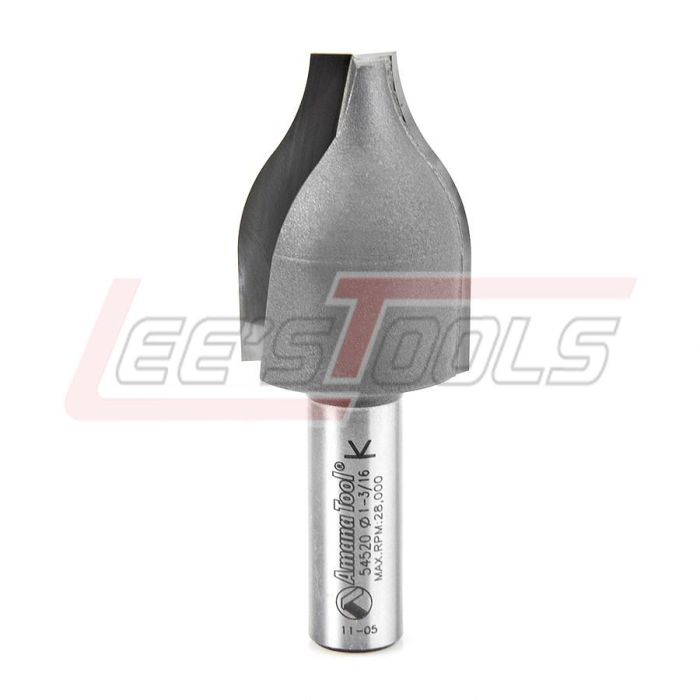

AMANA TOOL 54520 OGEE VERTICAL RAISED PANEL BIT
$68.33
In stock
SKU
35547
Vertical Raised Panel
2 Flute
A series of VERTICAL Raised Panels Bits designed for router
tables only. Use routers with 1-1/2 horsepower minimum and make several passes
for best finish, tool life and safety. Will not cut arched or curved shapes.
|
Type |
D |
D1 |
B |
a° |
R1 |
R2 |
R3 |
d |
L |
Tool No. |
|
Ogee |
1-3/16 |
7/16 |
1-5/8 |
--- |
7/8 |
23/32 |
--- |
1/2 |
3-1/8 |
54520 |
|
Cove |
1-1/8 |
9/32 |
1-5/8 |
--- |
1-9/16 |
--- |
--- |
1/2 |
3-1/8 |
54524 |
|
Ogee w/ Bead |
1-3/16 |
3/16 |
1-5/8 |
--- |
7/8 |
23/32 |
1/8 |
1/2 |
3-1/8 |
54528 |
|
Traditional |
1-1/8 |
19/32 |
1-5/8 |
15° |
--- |
--- |
--- |
1/2 |
3-1/8 |
54532 |
Warning: Use
in a table-mounted router. Not for use in a handheld router.
Products shown in
Bold indicate most popular items.
Note: Reveal (*'A') shown on tools reflects the total
length of cut. Therefore, you must deduct (usually 3/8") for allowing the panel
to recess into the frame.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 54520 |
