AMANA TOOL 55170 3 CUTTERS,47170/ OCEMCO TA-156
$35.03
In stock
SKU
35561
Ez-Change Flush Trim Bit (Replaces Ocemco
TA-150)
2 Flute
Quickly & easily change cutters without removing arbor from
the router. Carbide tipped cutters are mounted on alloy steel arbors with hex
drive to eliminate slipping. Save money by replacing only the cutters when the
knives become dull, instead of replacing the entire tool.
|
D |
B |
d |
L |
Tool No. |
|
1/2 |
1/2 |
1/4 |
1-31/32 |
47170 (replaces Ocemco TA-150) |
Replacement Parts
|
Description |
Tool No. |
|
1/4" Shank for #47170(screw & washer
included) |
47624 |
|
Description |
Tool No. |
|

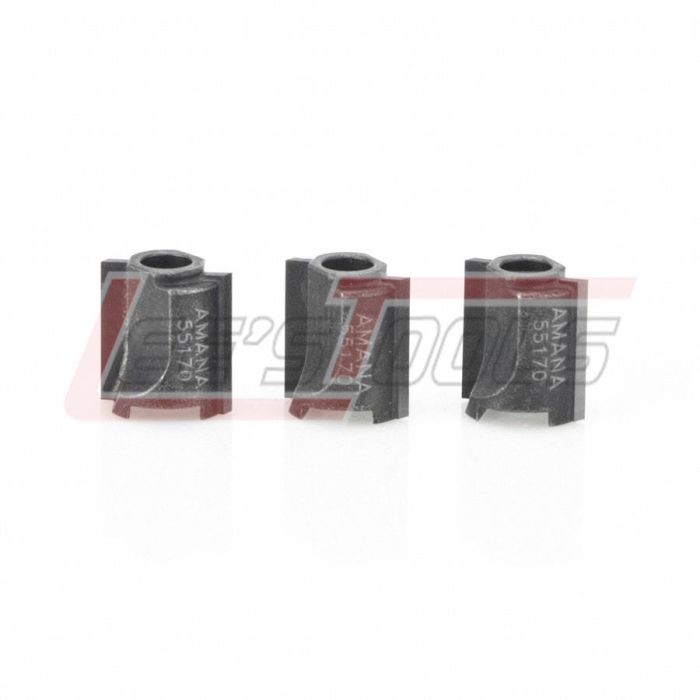

3-pack of Carbide Tipped Cutters for
#47170 |
55170 (replaces Ocemco TA-156) |
|
Description |
Tool No. |
|
Bearing (3/16" dia. x 1/2" dia.) |
47706 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55170 |
