AMANA TOOL 55176 3 CUTTERS,47176 /OCEMCO SYSTEM
$41.85
In stock
SKU
35564
Ez-Change No-File™ Bit
2 Flute - New Addition to
Ocemco System
Quickly & easily change cutters without removing arbor from
the router. Carbide tipped cutters are mounted on alloy steel arbors with hex
drive to eliminate slipping. Save money by replacing only the cutters when the
knives become dull, instead of replacing the entire tool.
Eliminate the time-consuming hand-filing that normally
follows each trimming cut on a laminate job. Our Insert No-File™ bit "breaks"
the sharp edge as it trims the laminate finish.
|
D |
B |
d |
L |
Tool No. |
|
1/2 |
23/64 |
1/4 |
1-63/64 |
47176 |
Replacement Parts
|
Description |
Tool No. |
|
1/4" Shank for #47170(screw & washer
included) |
47624 |
|
Description |
Tool No. |
|

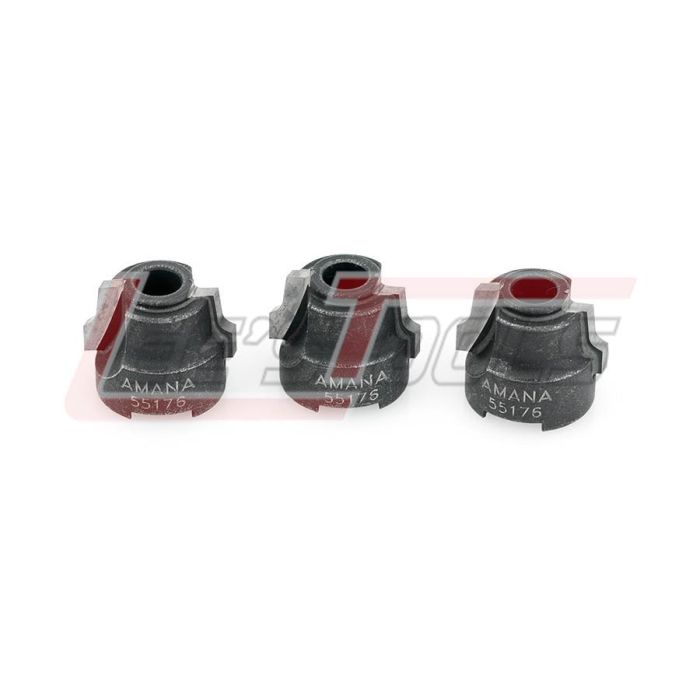

3-pack of Carbide Tipped Cutters for
#47176 |
55176 |
|
Description |
Tool No. |
|
Bearing (3/16" dia. x 1/2" dia.) |
47706 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55176 |
