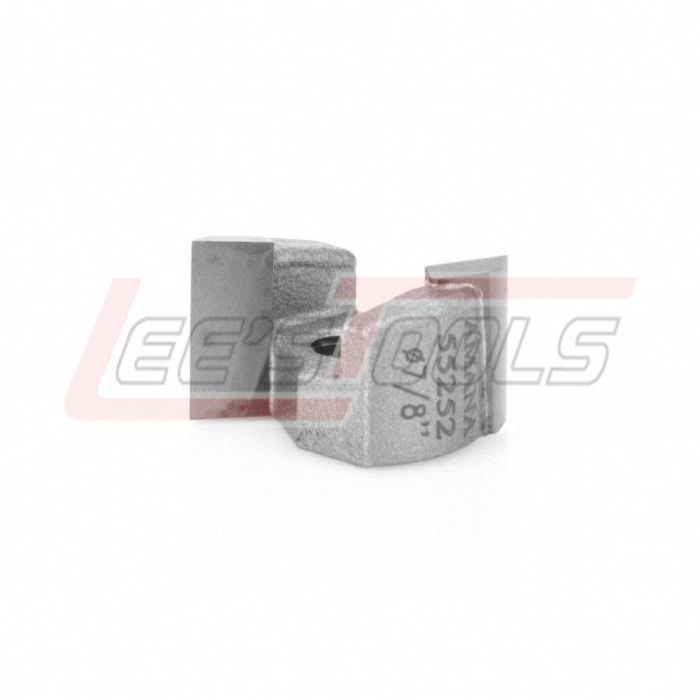

AMANA TOOL 55252 MORTISING SCREW TYPE 7/8 DIA.
$39.34
In stock
SKU
35589
Mortising Cutters
2 Flute • Screw Type Cutters Only(1/4 - 28 & 5/16 -
24 Thread)
Designed for use in standard lock mortising tools, thiscutter can also be
used in a standard router if mounted on a separate arbor.
|
D |
B |
Thread |
Tool No. |
|
1/2 |
7/8 |
1/4 - 28 |
55251** |
|
1/2 |
0.885 |
1/4 - 28 |
55253 |
|
5/8 |
9/16 |
1/4 - 28 |
55259 |
|
3/4 |
1/2 |
1/4 - 28 |
55250 |
|
13/16 |
9/16 |
1/4 - 28 |
55249 |
|
7/8 |
1/2 |
1/4 - 28 |
55252 |
|
1 |
1/2 |
1/4 - 28 |
55254 |
|
1-1/8 |
9/16 |
1/4 - 28 |
55256 |
|
1-1/4 |
9/16 |
1/4 - 28 |
55257 |
|
1-1/4 |
5/8 |
1/4 - 28 |
55258 |
|
1-1/4 |
5/8 |
5/16 - 24 |
55255* |
Arbors: 1/4 shank use #47611, 1/2shank use #47614.
*Arbor 1/4 shank use #47616
** Down Shear
Threaded Arbor for Mortising Cutters
|
D |
d |
A |
B |
L |
Application |
Tool No. |
|
1/4-28NF |
1/4 |
1-7/16 |
1/4 |
1-13/16 |
Screw Type Mortising bits 55250 through 22258 |
47611* |
|
1/4-28NF |
1/4 |
1-1/4 |
15/32 |
1-13/16 |
Screw Type
Mortising 55251 |
47615* |
|
5/16-24NF |
1/4 |
1-7/16 |
1/4 |
1-13/16 |
Screw Type
Mortising 55255 |
47616* |
|
1/4-28NF |
1/2 |
1-1/2 |
1/4 |
1-1/2 |
Screw Type
Mortising bits 55250 through 55258 |
47614* |
*Due to
application, these arbors are not furnished with hex nut or washers.
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser
etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55252 |
