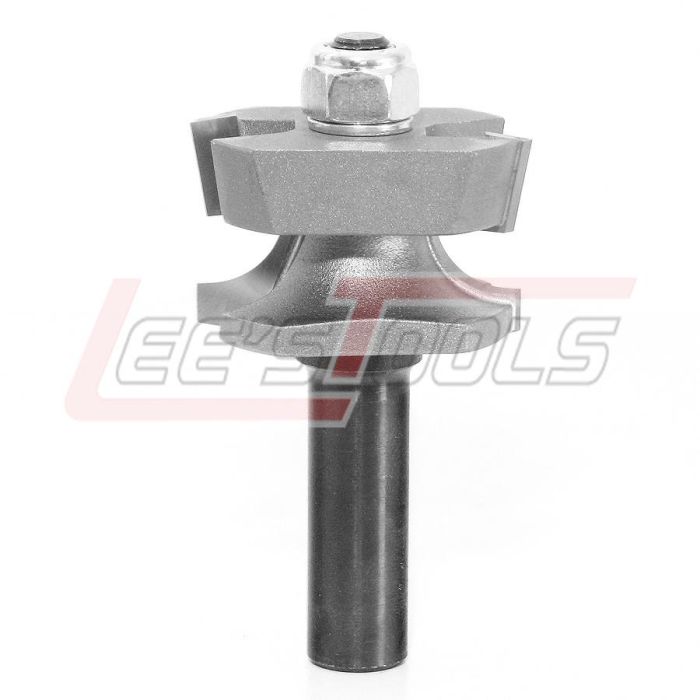

AMANA TOOL 55300 DOOR LIP CUTTER ASSEMBLY
$63.76
In stock
SKU
35612
Door Lip Assembly
2 Flute -
Mill the edges of doors and drawer fronts with this
assembly, rounding the show edge and simultaneously forming a rabbet with a
tapered shoulder on the back edge. Works on straight stock from 5/8" through 1"
in thickness. Must be used in a table-mounted router.
|
D |
R |
a° |
B |
d |
L |
Tool No. |
|
1-9/16 |
3/8 |
10° |
1 |
1/2 |
3 |
55300 |
Replacement Parts
|
Description |
Order # |
|
3/8" Corner round cutter |
55302 |
|
10° taper rabbet cutter |
55304 |
|
12" shank arbor with nut |
47612 |
NOTE: USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND
HELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55300 |
