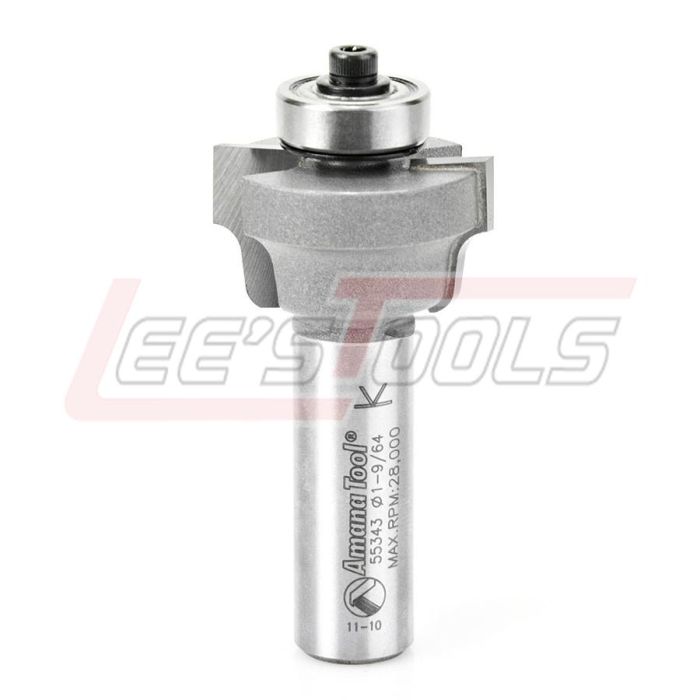

AMANA TOOL 55343 WINDOW SASH WITH BB 1/2" SHANK
$93.71
Out of stock
SKU
35628
Ogee Window Sash and Rail Router Bits
2 Wing with Ball Bearing Guide
This reversible assembly is designed to cut window sash and
glass door parts, including rails, stiles, mullions, and muntins, on stock
between 1-1/8" and 1-3/4" thick. Assembly includes an ogee profile cutter, a
rabbet cutter, one bearing, a 1/2" shank arbor, spacers, shims, and washers.
Configure as shown in the drawing to cut profile and rabbet on all parts. Switch
bearing and profile cutter and replace rabbet cutter with spacers to rout the
copes.
|
D |
R |
'A' Reveal |
B |
B1 |
B2 |
B3 |
d |
L |
Tool No. |
|
1-3/8 |
1/8 |
1/4 |
1-13/16 |
5/16 |
5/8 |
7/8 |
1/2 |
3-3/4 |
55340 |
|
1-3/8 |
1/8 |
--- |
21/32 |
1/16 |
--- |
--- |
1/2 |
2-1/8 |
55341 |
|
1-9/64 |
1/8 |
--- |
43/64 |
5/16 |
--- |
--- |
1/2 |
2-1/8 |
55343 |
NOTE: USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND
HELD ROUTER!
Replacement Parts
|
Description |
Qty. |
Order # |
|
Ogee Profile Cutter |
1 |
55342 |
|
3/4" Rabbet Cutter |
1 |
55344 |
|
Ball Bearing .865" dia. |
1 |
47708 |
|
1/2" Shank Arbor with Nut |
1 |
47620 |
|
3.0MM Spacer |
1 |
55366 |
|
6.0MM Spacer |
3 |
55368 |
|
.5MM Shim |
1 |
55404 |
|
.05MM Shim |
2 |
55356 |
|
.1MM Shim |
3 |
55357 |
|
1.0MM Black Washer |
1 |
55402 |
| Availability | Out of Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55343 |
