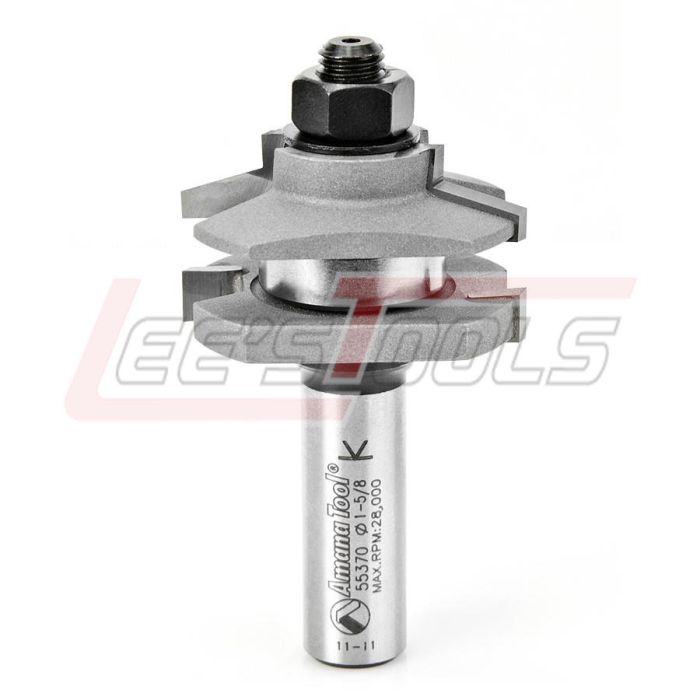

AMANA TOOL 55370 TRADITIONAL STILE AND RAIL ASS
$102.53
In stock
SKU
35648
Reversible Stile & Rail Assemblies
2-Wing With Ball Bearing Guide
Use one tool for both cuts by reversing the assembly.
Includes shims that give perfect alignment before and after sharpening. For best
results, the rail cut should be done on a router table. With complete
instructions.
Note: Stile & Rail assemblies can be used on 5/8" through
7/8" material. Tongue & Groove can be used on 1/2" through 3/4" material.
|
Pattern Type |
'A' Reveal |
D |
B1 |
B2 |
d |
L |
Tool No. |
|
Ogee |
3/8 |
1-5/8 |
11/16 |
7/8 |
1/2 |
3 |
55350 |
|
Pattern Type |
'A' Reveal |
D |
B1 |
B2 |
d |
L |
Tool No. |
|
Traditional |
3/8 |
1-5/8 |
11/16 |
7/8 |
1/2 |
3 |
55370 |
|
Pattern Type |
'A' Reveal |
D |
B1 |
B2 |
d |
L |
Tool No. |
|
Classical |
3/8 |
1-5/8 |
11/16 |
7/8 |
1/2 |
3 |
55380 |
|
Individual Components |
Quality Required for Tool No. |
||||
|
Order # |
Description |
55350 |
55370 |
55380 |
AMS-250 |
|
55352 |
Profile Cutter, Ogee |
1 |
--- |
--- |
1 |
|
55372 |
Profile Cutter, Traditional |
--- |
1 |
--- |
1 |
|
55382 |
Profile Cutter, Classical |
--- |
--- |
1 |
1 |
|
55354 |
1/4" Groove Cutter |
1 |
1 |
1 |
2 |
|
47708 |
Ball Bearing |
1 |
1 |
1 |
2 |
|
47612 |
1/2" Shank Arbor w/Nut |
1 |
1 |
1 |
1 |
|
55356 |
.05MM Shims |
3 |
3 |
3 |
3 |
|
55357 |
.10MM Shims |
3 |
3 |
3 |
3 |
|
55402 |
1.0MM Washers |
2 |
2 |
2 |
2 |
·
Replacement bearing for Stile Cutters #47702
(3/8" dia.).
·
Replacement bearing for Rail Cutters #47701 (1/2"
dia.).
·
Replacement collar for Rail Cutters #47724.
Warning: Not for use in a
handheld router. Use a table mounted router.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55370 |
