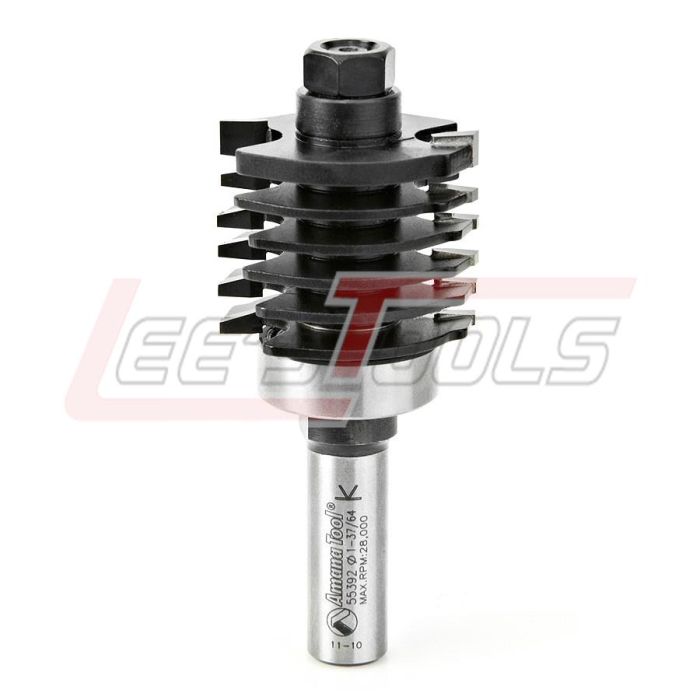

AMANA TOOL 55392 FINGER JOINT BIT 1/2 SHANK
$139.28
In stock
SKU
35662
Finger Joint Assembly Router Bits
2-Wing
With Ball Bearing Guide
With this
assembly, you can cut one-finger through five-fingers in multiple passes. Both
cuts are performed the same way; you simply turn over the counter-cut for a
perfect fit (see diagrams). All cutters feature 'chip breakers' behind each
cutting tooth which limits the thickness of the chip, allowing for a safer cut.
Assembly includes 5 individual finger cutters, 1/2" shank arbor, 1 straight
cutter, ball bearing guide, shims, spacers, washers and complete illustrated
instructions. Can be used on 7/16" (1-finger) through 1-3/8" stock (5-fingers).
Key Specifications
|
D |
B |
d |
L |
Tool No. |
|
1-9/16 |
1-3/8 |
1/2 |
3-3/4 |
55392 |
|
Order #
|
Description |
|
55394
|
Finger cutter (5 required)
|
|
55396
|
Straight cutter (1 required)
|
|
47736
|
Ball bearing (5/6"x28MM)
|
|
47620
|
1/2" Shank arbor with nut
|
|
55367
|
3.4MM Spacers (7 required)
|
|
55357
|
0.1MM Shims (10 required)
|
|
55404
|
0.5MM Shims (1 required) |
|
55402 |
1.0MM Washers (2
required) |
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55392 |
