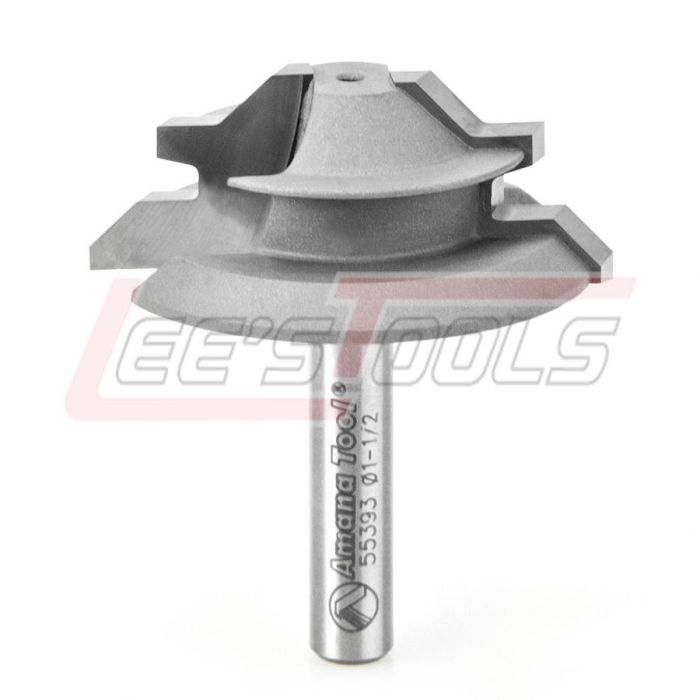

AMANA TOOL 55393 45 DEG. LOCK MITER 1/4" SHANK.
$82.16
In stock
SKU
35664
45° Lock Miter Router Bits
2 Flute
First piece is cut
flat (horizontal) and the second is cut perpendicular (vertical) to the first
for a perfect fit. There is no need tore-align the router depth, provided that
the wood is centered to the cutting edge of the bit. Not recommended for use in
a pin router nor a router table unless the length of your material can be
handled easily.
Key Specifications
|
D |
B |
a° |
d |
L |
Material Size
|
Tool No. |
|
|
1-1/2 |
1/2 |
45° |
1/4 |
1-5/8 |
5/16-7/16 |
55393 |
|
|
1-5/8 |
5/8 |
45° |
1/4 |
1-3/4 |
3/8-1/2 |
55391 |
|
|
1-3/4 |
7/8 |
45° |
1/2 |
2-1/8 |
3/8-3/4
|
55389 |
|
|
18! |
2-11/16 |
1-3/16 |
45° |
1/2 |
2-5/8 |
1/2-1-1/8
|
55390 |
Warning: Maximum RPM 18!=18,000!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55393 |
