AMANA TOOL 55400 TONGUE/GROOVE ASSEMBLY 1/4"KER
$85.13
In stock
SKU
35668
Tongue & Groove Assembly Router Bits
3/8" - 1-1/8" Material
2 Flute

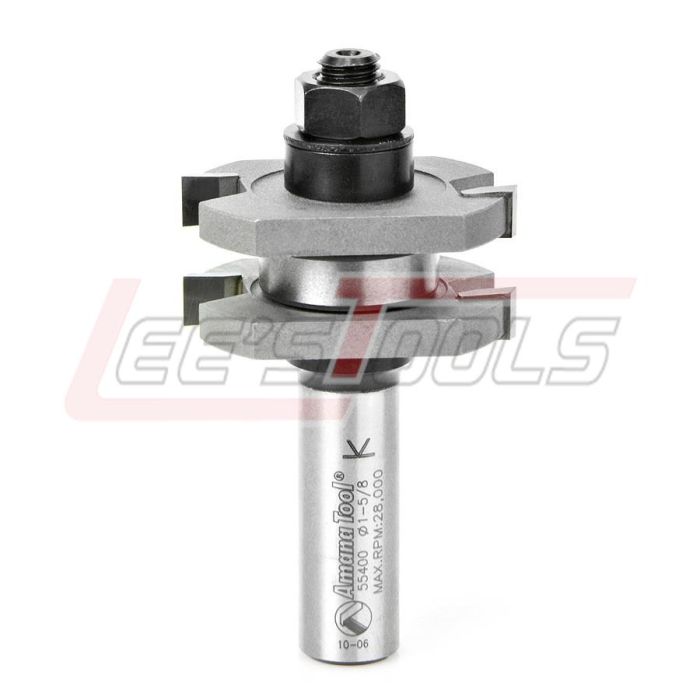

Cut perfectly fitted tongue-and-groove joints on stock
between 3/8" and 1-1/8" thick with a table-mounted router and this assembly. The
tool consists of an arbor with an integral shank, two identical, removable
slotting cutters, and a pair of bearings. To cut tongues, sandwich one bearing
between the two cutters. To cut slots, mount one cutter between the two
bearings.
Tongue is cut as shown in assembly ‘A’. For groove cut,
reassemble the tool as shown in ‘B’. Instructions included.
|
øD |
B |
B1 |
C |
ød |
t |
L |
Material Size |
Tool No. |
|
1-5/8 |
17/32 |
13/64 |
3/8 |
1/2 |
1/8 |
3 |
3/8"-1/2" |
55408* |
|
1-5/8 |
3/4 |
1/4 |
3/8 |
1/2 |
1/4 |
3 |
1/2"-3/4" |
55400 |
|
1-7/8 |
3/4 |
1/4 |
1/2 |
1/2 |
1/4 |
3 |
1/2"-3/4" |
55407 |
|
1-5/8 |
1-1/8 |
3/8 |
3/8 |
1/2 |
3/8 |
3-3/8 |
3/4"-1-1/8" |
55401 |
* 2 Piece Set
NOTE: USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND
HELD ROUTER!
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55400 |
