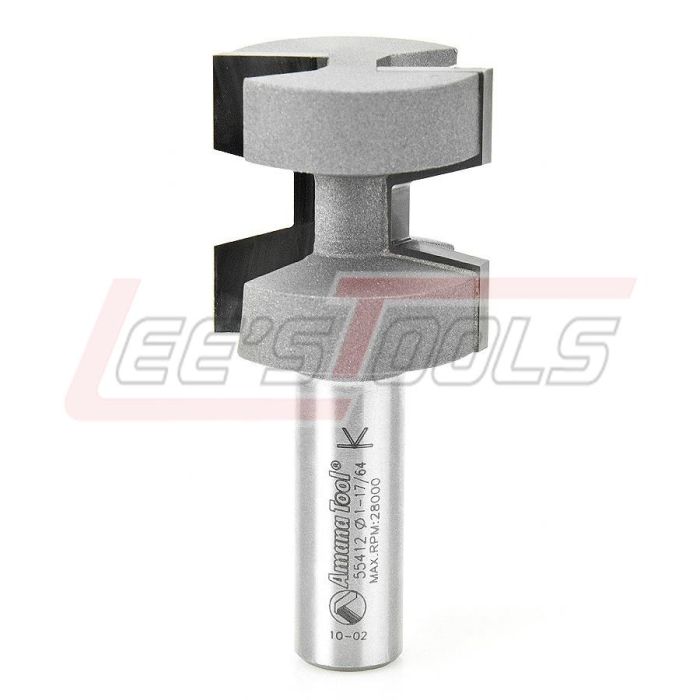

AMANA TOOL 55412 WEDGE TONGUE BIT 1/2 SHANK
$101.89
In stock
SKU
35679
Wedge Tongue & Groove Router Bits
2 Flute
Can be used for T & G florring or other applications
requiring a wedge pattern type. For 5/8" through 1-1/4" stock. Available
individually or as a 2-piece set.
|
D1 |
D2 |
a° |
Description |
B |
B1 |
d |
L |
Tool No. |
|
1-1/4 |
9/16 |
15° |
Wedge groove |
1-1/4 |
1/4 |
1/2 |
2-3/4 |
55410 |
|
1-1/4 |
9/16 |
15° |
Wedge tongue |
1-1/4 |
7/16 |
1/2 |
2-3/4 |
55412 |
|
1-1/4 |
9/16 |
15° |
Complete Wedge T&G (2 piece set) |
55414 |
||||
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55412 |
