AMANA TOOL 55421 2 PC CONCAVE STIL/RAIL 3/4 MAT
$176.36
In stock
SKU
35683

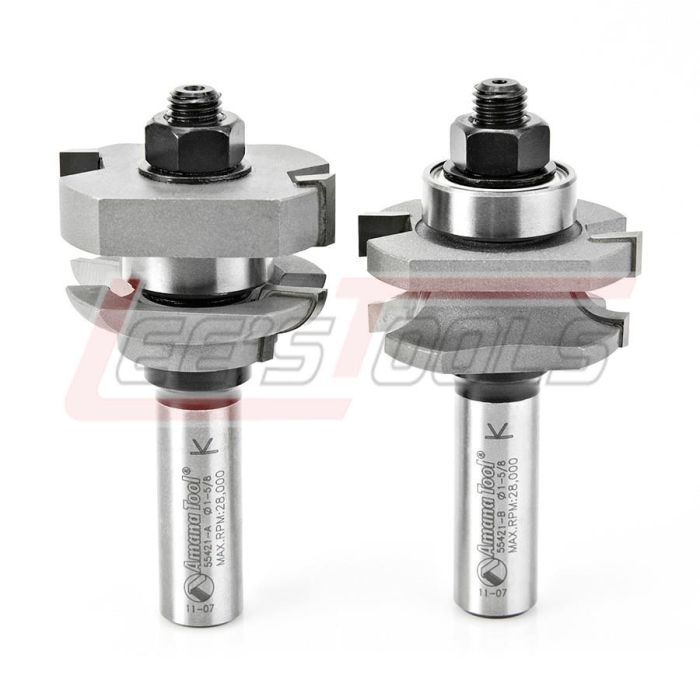

2 Piece Stile & Rail Router Bit Sets
2-Wing With Ball Bearing Guide 3/4"
Material
Our rail and stile sets give you two complete bits, one for
doing the rail cuts, one for the stiles. Make cabinet doors and all varieties of
frame-and-panel assemblies for furniture and architectural applications. The
same three profiles are available in either configuration.
Bits in this set have profile and groove or rabbet cutters
and ball-bearing guide mounted on a 1/2" shank. Respacing of the components
should only be necessary – using the provided shims – after the cutters have
been resharpened. Use in a table-mounted router. Guide straight cuts with the
fence; use the pilot bearing only for cuts on curved rails or stiles.
|
Pattern Type |
D |
R |
B |
B1 |
d |
L |
Tool No. |
|
Concave |
1-5/8 |
1/4 |
11/16 |
1/4 |
1/2 |
3-1/8 |
55421 |
|
Ogee |
1-5/8 |
1/4 |
11/16 |
1/4 |
1/2 |
3-1/8 |
55431 |
|
Bead |
1-5/8 |
3/16 |
11/16 |
1/4 |
1/2 |
3-1/8 |
55441 |
|
Individual Components: |
Qty. Required for Tool No. |
|||
|
Order # |
Description |
55421 |
55431 |
55441 |
|
55422 |
Concave Profile Cutter |
1 |
— |
— |
|
55424 |
Concave Cope Cutter |
1 |
— |
— |
|
55352 |
Ogee Profile Cutter |
— |
1 |
— |
|
55434 |
Ogee Cope Cutter |
— |
1 |
— |
|
55442 |
Bead Profile Cutter |
— |
— |
1 |
|
55444 |
Bead Cope Cutter |
— |
— |
1 |
|
55354 |
.250" Groove Cutter |
1 |
1 |
1 |
|
55452 |
.400" Rabbet Cutter (1.615" dia.) |
1 |
1 |
1 |
|
47708 |
.865" Ball Bearing |
2 |
2 |
2 |
|
47622 |
1/2" Shank Arbor with Nut |
2 |
2 |
2 |
|
55356 |
.002" Shims |
4 |
4 |
4 |
|
55402 |
.040" Shims |
4 |
4 |
4 |
|
55357 |
.004" Shims |
4 |
4 |
4 |
|
55367 |
3.6 mm Spacers |
4 |
4 |
4 |
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55421 |
