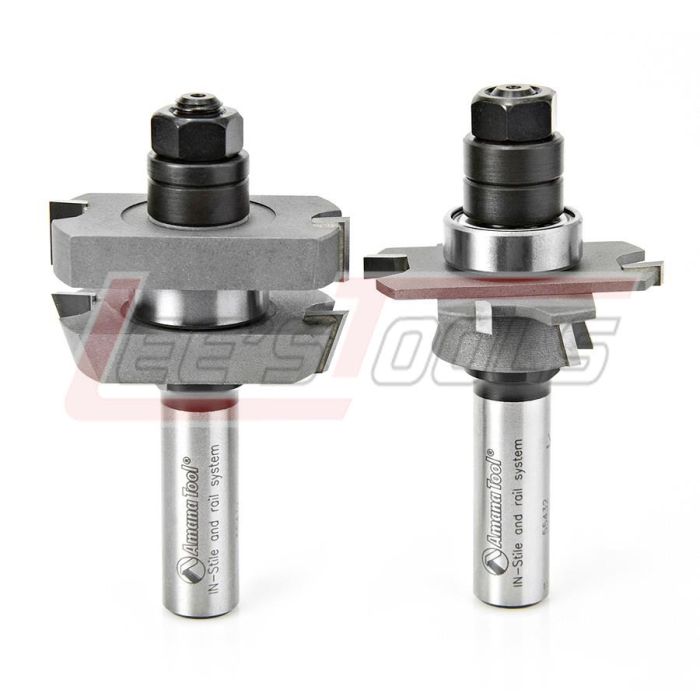

AMANA TOOL 55432 IN-STILE/RAIL STRAIGHT W/BEVEL
$186.60
In stock
SKU
35691
Instile & Rail System for Mission Style Cabinet Doors
The perfect fix for
undersized plywood flat panel cabinet doors
2 Flute
·
Designed to cut precise grooves to provide
undersized plywood veneered panels
with a snug rattle free fit.
·
Adjust the panel groove width (3/16" to 9/32" for
1/4" plywood - 7/16" to 17/32" for
1/2" plywood).
·
Cut frame stock for 5/8" through 1-1/4" in
thickness.
·
Each set includes 2 pcs. (1 for stile cuts & 1
for rail cuts and shims).
·
Carbide- tipped for longer cutting tool life.
|
D |
B |
B1 |
C |
d |
L |
Tool No. |
|
1-5/8 |
3/16" - 1/2" |
3/4" - 1-1/4" |
3/8 |
1/2 |
3-11/32 |
55438 |
|
1-7/8 |
3/16" - 1/2" |
3/4" - 1-1/4" |
1/2 |
1/2 |
3-11/32 |
55439 |
NOTE: USE IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND
HELD ROUTER!
Notes:
5/8" - 1-1/4" Material
Respacing of the components should only be necessary –
using the provided shims – after the cutters have been resharpened. Use in a
table-mounted router. Guide straight cuts with the fence.
Straight w/ Bevel
|
øD |
Bevel |
B |
B1 |
C |
ød |
L |
Tool No. |
|
1-7/8 |
18° |
3/16" - 1/2" |
3/4" - 1-1/4" |
1/2 |
1/2 |
3-11/32 |
55432 |
Concave / Convex
|
øD |
R |
B |
B1 |
C |
ød |
L |
Tool No. |
|
1-5/8 |
5/32 |
3/16" - 1/2" |
3/4" - 1-1/4" |
3/8 |
1/2 |
3-11/32 |
55433 |
Ogee
|
øD |
R |
B |
B1 |
C |
ød |
L |
Tool No. |
|
1-5/8 |
1/4 |
3/16" - 1/2" |
3/4" - 1-1/4" |
3/8 |
1/2 |
3-11/32 |
55436 |
Bead
|
øD |
R |
B |
B1 |
C |
ød |
L |
Tool No. |
|
1-5/8 |
3/16 |
3/16" - 1/2" |
3/4" - 1-1/4" |
3/8 |
1/2 |
3-11/32 |
55437 |
Max RPM Guide for
Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 55432 |
