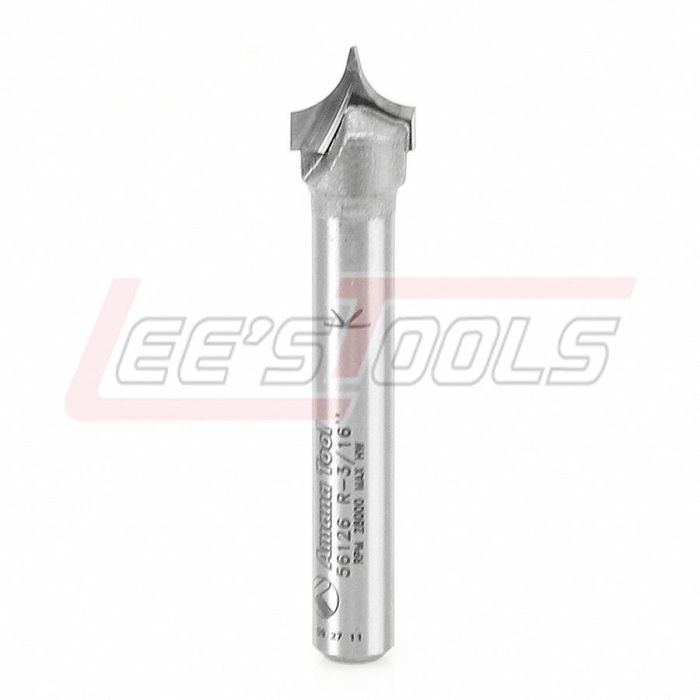

AMANA TOOL 56126 PANEL & VEINING 3/8"x1/4" SHK
$35.85
In stock
SKU
1886178
Point Cutting Roundover
2 Flute
For trimming, lettering & fluting.
|
D |
R |
B |
B1 |
d |
L |
Tool No. |
|
1/4 |
1/8 |
5/16 |
1/8 |
1/4 |
2 |
56125* |
|
3/8 |
3/16 |
19/64 |
3/16 |
1/4 |
1-7/8 |
56126 |
|
19/32 |
19/64 |
1/2 |
19/64 |
1/4 |
2-9/64 |
56128 |
* Solid Carbide
Please Note: Bit not guaranteed due to avery fine plunge
point
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 56126 |
