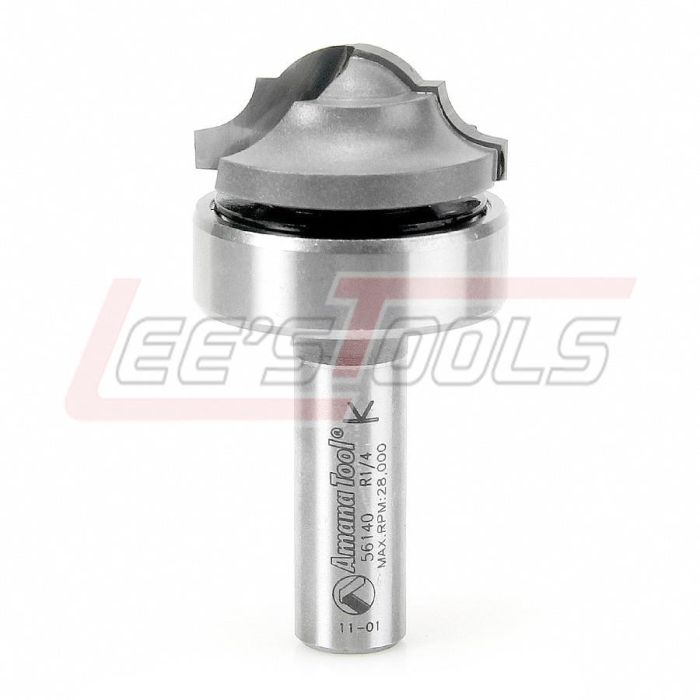

AMANA TOOL 56140 CLASSICAL WITH UPPER B/B 1/2SK
$101.85
In stock
SKU
35751
Classical Groove Router Bits
2 Flute with Ball Bearing Guide
Rout decorative grooves on solid wood or MDF panels and
surfaces with a handheld or CNC router. Form edges with a hand router equipped
with an edge guide, or on a router table. Shank-mounted bearing allows cuts to
be guided by a template mounted atop the workpiece.
|
D |
R |
R1 |
B |
d |
L |
Tool No. |
|
7/8 |
5/32 |
7/32 |
1/2 |
1/4 |
2 |
56130 |
|
1-3/8 |
1/4 |
13/32 |
9/16 |
1/2 |
2-5/8 |
56140 |
Replacement Parts
|
Ball Bearing |
Lock Ring |
Tool No. |
|
47708 |
47748 |
56130 |
|
47734 |
47750 |
56140 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
?USE
IN A TABLE MOUNTED ROUTER. NOT FOR USE IN A HAND HELD ROUTER!
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 56140 |
