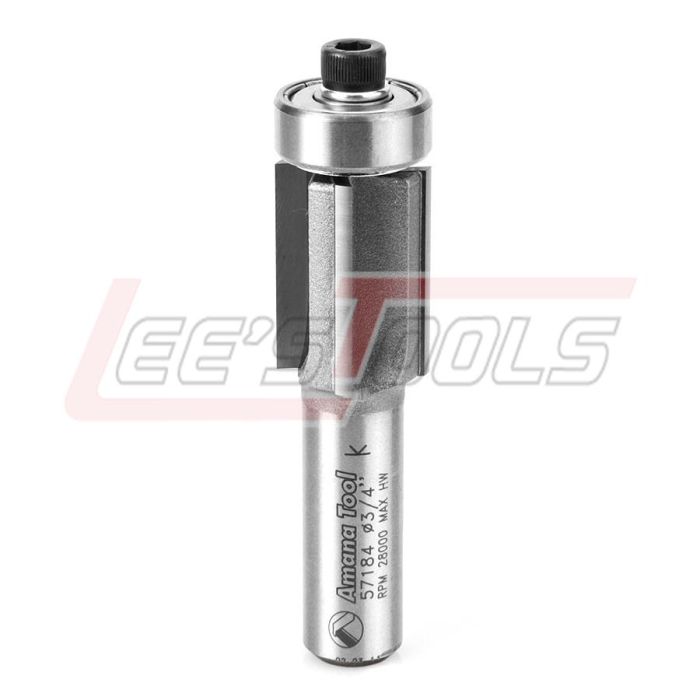

AMANA TOOL 57184 4 FLUTE FLUSH TRIM 3/4 DIA.
$64.54
In stock
SKU
35830
Flush Trim Router Bits with Ball Bearing Guide
For an extremely smooth finish, choose the three-flute
configuration. It is especially good to use on laminates that tend to chip
easily.
4 Flute
|
D |
B |
d |
L |
Tool No. |
|
3/4 |
1 |
1/2 |
3 |
57184 |
|
3/4 |
1-1/2 |
1/2 |
4 |
54185 |
|
3/4 |
1 |
1/2 |
4-1/2 |
57186 |
Standard replacement bearing (steel) use #47714.
Optional Delrin® replacement bearing use #47709, for solid
surface application.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to
laser etching on router bit shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | 57184 |
