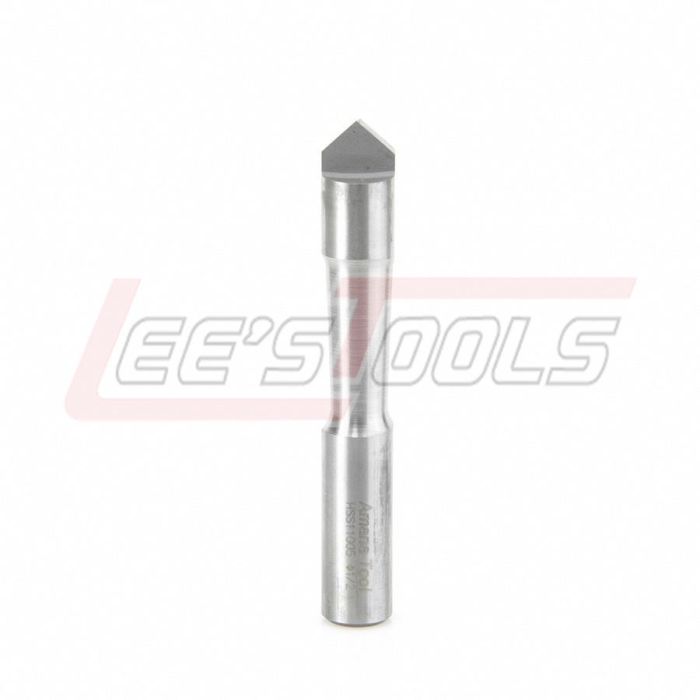

AMANA TOOL HSS11005 HSS PANEL PILOT 1/2" SPIRAL
$17.93
In stock
SKU
38255
High Speed Steel Panel Pilot (HSS) Router Bits
HSS Straight Panel
Pilot Router Bits
Single Flute
The ultimate
boring/pilot bit! These HSS panel pilot bits are long lasting and perfect
for mobile homes, modular homes and
the RV industries
Designed to cut :
Wood panels, Vinyl coated panels, Wood panels and Aluminum layered material.
|
D |
B |
d |
L |
Tool No. |
|
1/4 |
5/8 |
1/4 |
2-3/4 |
HSS11004 |
|
3/8 |
3/4 |
3/8 |
3-1/8 |
HSS11002 |
HSS Spiral Panel
Pilot Router Bits
Single Flute
Perfect for mobile
homes and RV industries, the
down-cut design ejects the chips away from the operator.
Perfect for: Drywall, Wallboard, Vinyl coated panels,
Aluminum and Plywood sandwich panels
|
D |
B |
d |
L |
Tool No. |
|
1/4 |
5/8 |
1/4 |
2-3/4 |
HSS11003 |
|
3/8 |
3/4 |
3/8 |
3-1/8 |
HSS11001 |
|
1/2 |
1 |
1/2 |
3-1/2 |
HSS11005 |
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | HSS11005 |
