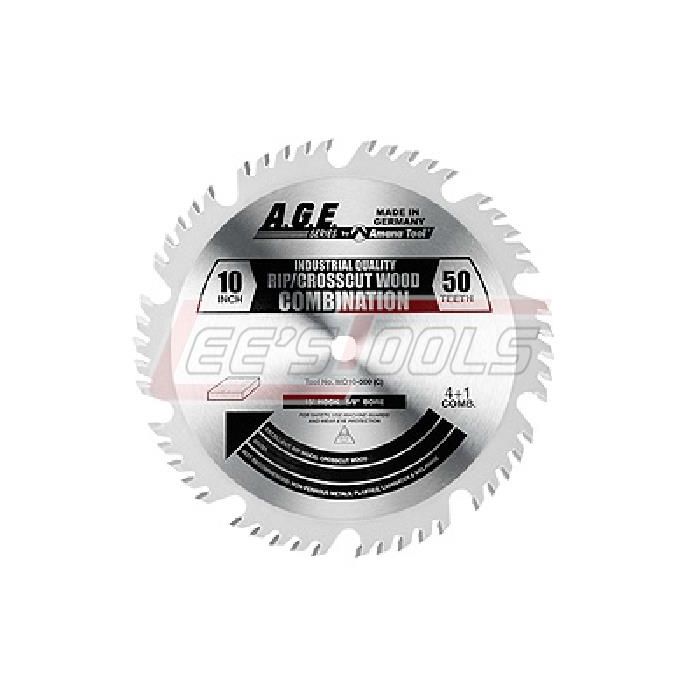

AMANA TOOL MD10-500 COMBINATION 10"x50T 5/8" BORE
$67.20
In stock
SKU
38332
Combination
Rip/Crosscut SawBlades
•
Carbide Tipped
•
Comb. 4+1 (4
AlternateTop Bevel Followed by 1 Raker -
Then an "Open"
Gullet for ChipClearance
•
All-purpose table
sawblades
In many
customwoodworking shops one blade must cut a wide variety of materials. This
bladewill effectively rip and crosscut hardwoods, softwoods, as well as sheet
stocksuch as plywood and particleboard. It features the time-tested
combinationblade design- four alternate top bevel teeth with a flat-top raker.
The lasercut slots virtually eliminate vibration and noise for smooth, quiet
cutting.
Specifications
|
Tool No. |
Dia. |
Teeth |
Kerf mm |
Kerf Inch |
Plate mm |
Plate Inch |
Hook Angle |
Bore |
P.H. |
|
MD8-404 |
8" |
40 |
3.2 |
.126 |
2.2 |
.087 |
15° |
5/8"* |
- |
|
MD10-500 |
10" |
50 |
3.2 |
.126 |
2.2 |
.087 |
15° |
5/8" |
- |
|
MD12-604 |
12" |
60 |
3.8 |
.150 |
2.8 |
.110 |
15° |
1" |
- |
|
MD14-704 |
14" |
70 |
3.8 |
.150 |
2.8 |
.110 |
15° |
1" |
- |
|
MD14-704-30 |
14" |
70 |
3.8 |
.150 |
2.8 |
.110 |
15° |
30mm |
* |
* denotes 5/8"
arbor with
*
diamondknockout
* 30mm
boreblades accept pin-holes arrangements of; 2/10/60, 2/7/42 & 2/9/46
Products shown in
Boldindicate most popular saw blades.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | MD10-500 |
