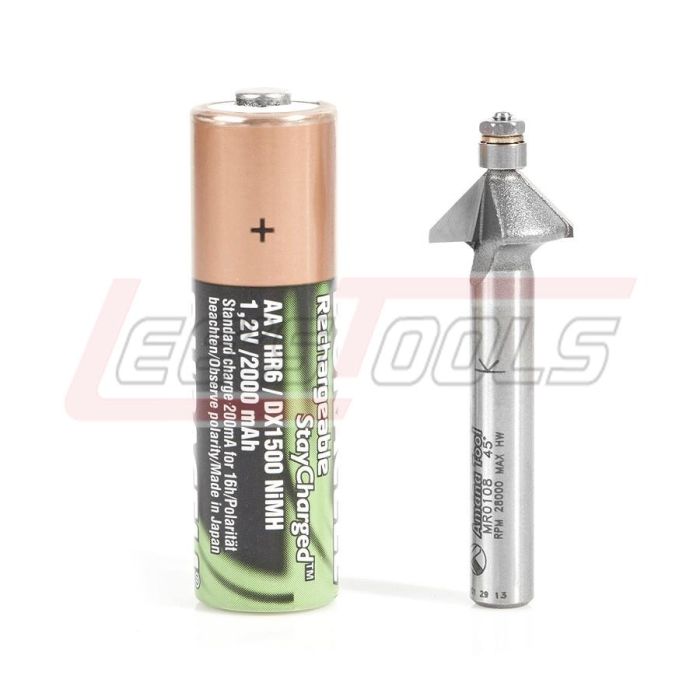

AMANA TOOL MR0108 45ø MINIATURE BEVEL TRIM
$30.79
In stock
SKU
38539
Chamfer Bits with Miniature Ball Bearing Guide New
2 Flute
Each Amana Tool exclusive miniature bit features a 3/16”
diameter ball bearing guide that is much smaller than other ball bearing router
bits on the market, making the bits ideal for delicate projects such as
sign-making, building musical instruments, routing letter edges, flush trimming
tight corners and high production projects.
The miniature bearing router bits can be used on wood and
plastics and come in a variety of profiles including round over, chamfer, flush,
bevel trim and rabbet.
Amana Tool’s miniature bearing router bits are uniquely
designed with a ball bearing at the bottom end of the bit, eliminating burnout
caused by brass pin-piloted bits. The cutting edge of each router bit is
engineered from an Amana-exclusive carbide grade designed to deliver the highest
quality of cut, maximum cutting efficiency prolonged tool life. The bits can fit
into tight spaces and sharp corners where a larger diameter bearing cannot,
making it easier for users to work on finely detailed work pieces that have
intricate contours, tight confines and narrow openings. The series’ innovative
design also delivers a consistent edge that eliminates hand sanding or filing,
thus saving users time and labor.
|
D |
D 1 |
a° |
B |
d |
L |
Tool No. |
|
1/4 |
3/16 |
7° |
3/8 |
1/4 |
1-7/8 |
MR0106 |
|
9/16 |
3/16 |
45° |
1/4 |
1/4 |
1-7/8 |
MR0108 |
Replacement Parts
Ball Bearing: #47775 (O.D.=3/16", I.D.=3/32",
Thickness=3/32")
Hex Nut: #67135 (2-56 UNC)
Lock Washer: #67129 (O.D.=11/64", I.D.=3/32", Thickness=
0.75mm)
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the
maximum RPM shown for the particular tool you are using. Max RPM for symmetrical
tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta. Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | MR0108 |
