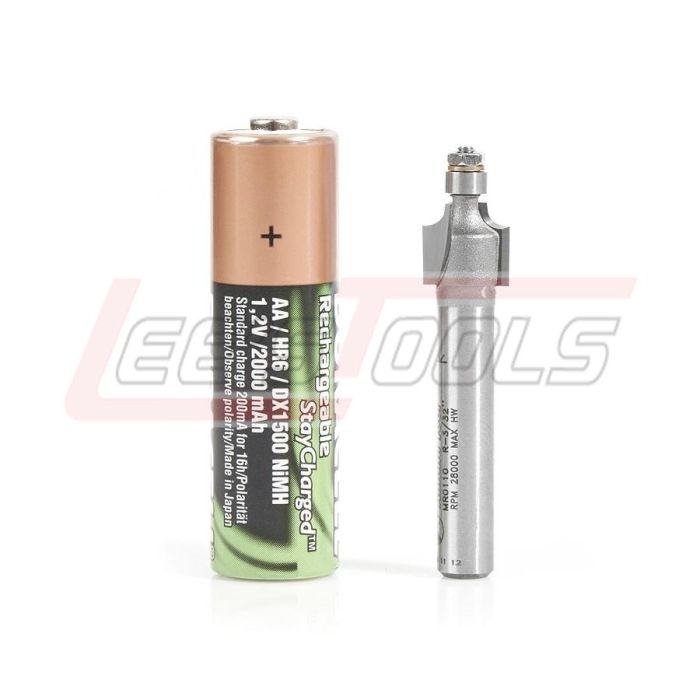

AMANA TOOL MR0110 3/32"R MINIATURE ROUNDING OVER
$35.03
In stock
SKU
38540
Corner Round Bits
with Miniature Ball Bearing Guide
2 Flute
Each Amana Tool
exclusive miniature bit features a 3/16€
diameter ball bearing guide that is much smaller than other ball bearing router
bits on the market, making the bits ideal for delicate projects such as
sign-making, building musical instruments, routing letter edges, flush trimming
tight corners and high production projects.
The miniature
bearing router bits can be used on wood and plastics and come in a variety of
profiles including round over, chamfer,
flush, bevel trim and rabbet.
Amana Tool€™s
miniature bearing router bits are uniquely designed with a ball bearing at the
bottom end of the bit, eliminating burnout caused by brass pin-piloted bits. The
cutting edge of each router bit is engineered from an Amana-exclusive carbide
grade designed to deliver the highest quality of cut, maximum cutting efficiency
prolonged tool life. The bits can fit into tight spaces and sharp corners where
a larger diameter bearing cannot, making it easier for users to work on finely
detailed work pieces that have intricate contours, tight confines and narrow
openings. The series€™ innovative design also delivers a consistent edge that
eliminates hand sanding or filing, thus saving users time and labor.
|
D
|
D 1 |
R |
B |
d |
L |
Tool No. |
|
3/8 |
3/16 |
3/32 |
3/8 |
1/4 |
1-13/16 |
MR0110 |
|
7/16 |
3/16 |
1/8 |
3/8 |
1/4 |
1-13/16 |
MR0112 |
|
1/2 |
3/16 |
5/32 |
3/8 |
1/4 |
1-13/16 |
MR0114 |
Replacement Parts
Ball Bearing: #47775(O.D.=3/16", I.D.=3/32", Thickness=3/32")
Hex Nut: #67135 (2-56UNC)
Lock Washer: #67129(O.D.=11/64, I.D.=3/32)
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using.
Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
Note: Please also refer to laser etching on router bit
shank for most updated RPM speed rating.
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | MR0110 |
