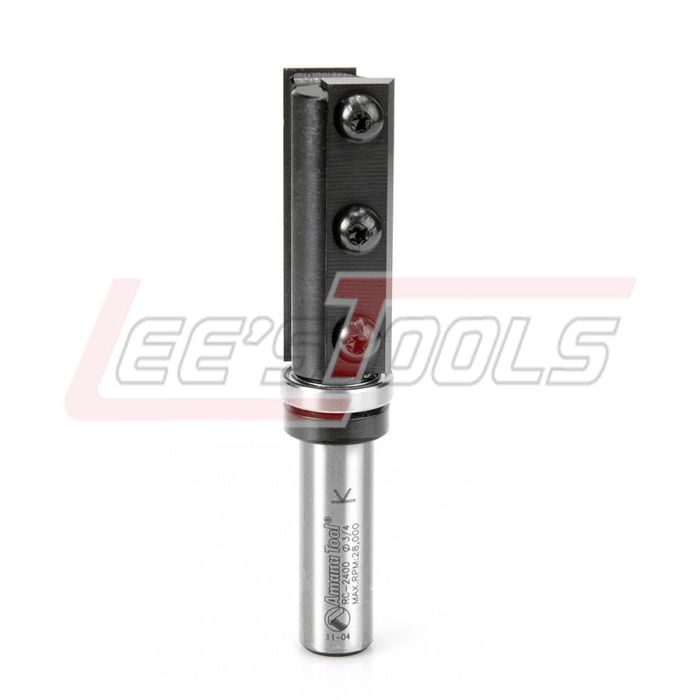

AMANA TOOL RC-2400 INSERT FLUSH TRIM UPPR BB 50mm
$146.78
In stock
SKU
38899
Left Hand Plunge Router Bits
2 Flute
Insert carbide is
the economical way to go. Each knife has two edges; saves down time. We have
four different grades of carbide for various applications, such as:
hard/softwood, MDF, solid surface, chipboard and plywood.
|
D |
B |
d |
L |
Replacement Knives
|
Tool No. |
|
3/4 |
30mm |
1/2 |
3-1/4 |
RCK-30 |
RC-1230 |
|
3/4 |
50mm |
1/2 |
3-15/16 |
RCK-151 |
RC-2400* |
*This tool is
meant for difficult work. The knives are held with 3 screws.
Replacement
bearing #47721
Replacement collar
#47739
Replacement knife
screws #67115
Note: Please
also refer to laser etching on router bit shank for most updated RPM speed
rating.
Max RPM Guide for Amana Tool® Router Bits
Do not exceed the maximum RPM shown for the particular tool
you are using. Max RPM for symmetrical tool only!
No exceda la maxima velocidad (RPM) indicada para cada
herramienta.
Máximo RPM para la herramienta simétrica solamente!
|
Router Bit Dimensions |
Max RPM |
|
2" (Less than 50) |
28,000 |
|
2" - 2-3/8" (50-60mm) |
22,000 |
|
2-3/8" - 2-3/4" (60-70mm) |
19,000 |
|
2-3/4" - 3-1/4" (70-80mm) |
16,000 |
|
3-1/4" - 3-5/8" (80-90mm) |
15,000 |
|
3-5/8" < (90-100mm) |
13,000 |
| Availability | In Stock |
|---|---|
| Manufacturer | AMANA TOOL |
| Manufacturer Sku | RC-2400 |
