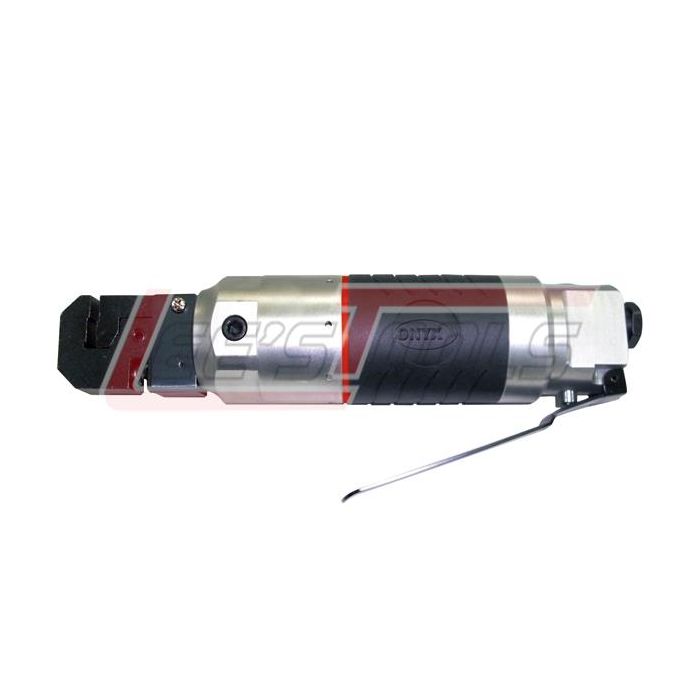

ASTRO PNEUMATIC 605ST ONYX Straight Type Punch/ Flange Tool with 5.5mm Punch

Part No.: 605ST

ONYX Straight Type Punch/ Flange Tool with 5.5mm Punch

Features

•        Punch designed for easy replacement

•        Performs hole punching and panel crimping

•        Features a rotating head for convenient use

•        Every pull of the lever delivers a single punch or a single flange crimp with precision control

•        Forms an offset crimped edge on sheet metals for no-bump lap welds

•        Lightweight

•        Durable construction

•        Reduces metal fabrication time in half

Specifications

•        Punch Diameter: 5.5mm (7/32")

•        Punch Capacity: 1.6mm (1/16")

•        Crimping Capacity: 1.6mm (1/16")

•        Piston Stroke: 5/32" (4mm)

•        Overall Length: 9.84" (250mm)

•        Net Weight: 2.6lbs. (1.18kg)

•        Air Inlet Thread NPT: 1/4"

•        Air Hose I.D. Size: 3/8" (10mm)

•        Avg. Air Consumption: 4cfm

•        Air Pressure: 90-120psi
