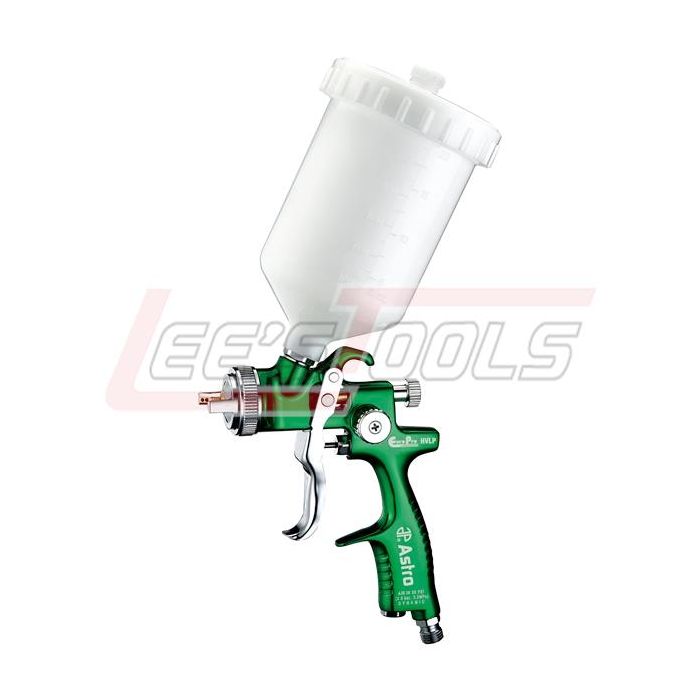

ASTRO PNEUMATIC EUROHV103 EuroPro Forged HVLP Spray Gun with 1.3mm Nozzle & Plastic Cup

Part No.: EUROHV103

EuroTech Forged HVLP Spray Gun with 1.3mm Nozzle & Plastic Cup

Features

·         Durable & lightweight

·         Forged body provides longer tool life

·         Anodized body for corrosion protection

·         Internal coated passages

·         Stainless steel needle and fluid tip

·         Slick finish for faster & easier cleaning

·         Lightweight: 325 grams (0.7 Lbs) high efficiency

·         Unique pattern designed for great coverage, optimal overlapping

·         Low overspray (bounce back)

·         Great transfer efficiency

·         Superior atomization

·         Innovative, advanced HVLP technology quick thread technology

·         1 Turn to lock/unlock the air cap

·         3 Turns to lock/unlock the fluid tip

·         Wide threads for easy cleaning

·         M16*P1.5 female thread fluid joint

·         Compatible with most traditional and disposable cup systems smooth operation

·         Soft trigger pull to reduce fatigue

·         Precise lubricated adjustment knobs for better control

·         Innovative CNC machining to avoid the need for gaskets behind the fluid tip

Specifications

·         Nozzle Size: 1.3mm

·         Cup Capacity: 600ml

·         Operation Pressure: 29psi

·         Weight: 0.7lbs. (325g)

·         Dimensions W x H: 7" x 5-3/4" (175mm x 145mm)

·         Avg. Air Consumption: 9-10cfm

·         Air Inlet Thread NPT: 1/4"

·         Required Compressor: 2-5hp Max. Pattern at 4" to 7"

·         Distance: 9"-12" (230-260mm)

·         Air Cap Output: 10psi

·         Air Hose I.D. Size: 6-8mm
