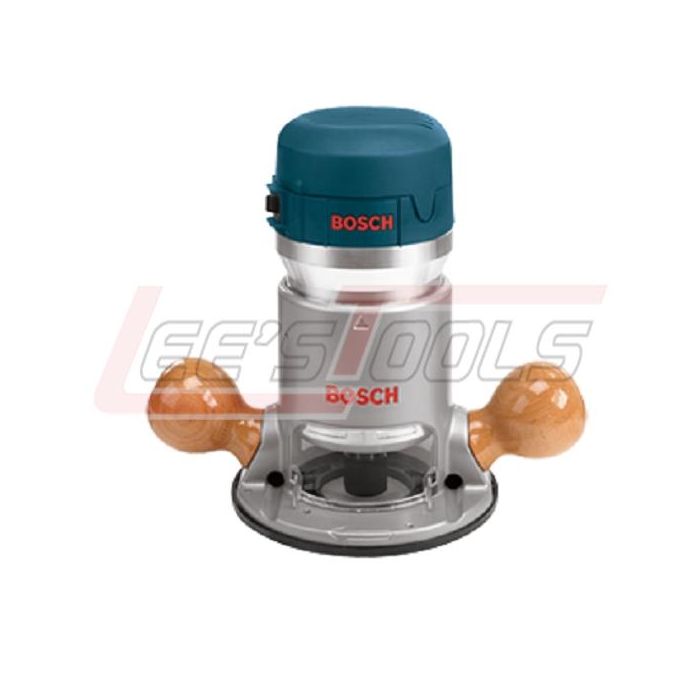

BOSCH 1617 2 HP Fixed-Base Router
2 HP Fixed-Base Router
·
2 HP / 11 Amp Motor 25,000 RPM
·
Precision Centering Design — Makes it easy to
keep bit on intended cutline when using jigs, templets, dovetail fixtures and
similar guidance devices
·
Macro and microfine bit depth adjustment system
with resettable depth indicator — Fo fast, precise depth adjustment
·
Large 3-3/4" base opening plus 2" subbase opening
— Accepts large bits
·
Right or left switch location — For user
preference and consistency (motor does not rotate during depth adjustment)
·
One-piece armature shaft — For accurance and long
bit shank capacity
·
10 ft. flexible rubber cord
·
Classic hardwood handles — For comfort and beauty
·
Now includes RA1161 Fixed-Base with system for
adjusting bit height from above a router table!
·
Optional RA1126 Quick-Change Templet Guide
Adapter (sold separately) — For fast and easy change of Bosch RA-Series templet
guide (or threaded templet guides, if optional RA1100 adapter is also used.)
·
T-Handle Adjustment Wrench sold separately
·
Fixed base has threaded holes for mounting to
router table positioned in common 3-hole pattern.
·
Power Switch - Now includes dust-sealed power
switch
Specifications
|
Amperage |
11 |
|
Base Diameter |
6" |
|
Base Opening |
3-3/4" |
|
Collet Capacity |
1/4", 3/8", 1/2", 8mm |
|
Cord Length |
10' |
|
Manuals |
1617, 1617EVS, 1617EVSP, 1617EVSPK, 1617EVSTB, 161... (EN) #18975
(D#18975) |
|
Max. Motor HP |
2 |
|
No Load RPM |
25,000 |
|
Part Diagrams |
1617 (EN) #19094 (D#19094) |
|
Rating |
120 V AC |
|
Service Baretool Numbers |
0601617039 |
|
Service Baretool Numbers |
0601617061 |
|
Service Baretool Numbers |
0601617161 |
|
Serviceable |
Yes |
|
Subbase Opening |
2" |
|
Used on Model No. |
RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables |
|
Weight (lbs.) |
8.3 |
Includes:
·
1/4" S. R. Collet Chuck -- 2 610 906 283
·
1/2" S. R. Collet Chuck -- 2 610 906 284
·
16mm Shaft Wrench -- 2 610 991 388
·
24mm Collet Nut Wrench -- 2 610 992 417
·
Chip Shield-- 2 610 991 389
·
Fixed Base (RA1161)
| Availability | In Stock |
|---|---|
| Manufacturer | BOSCH |
| Manufacturer Sku | 1617 |
