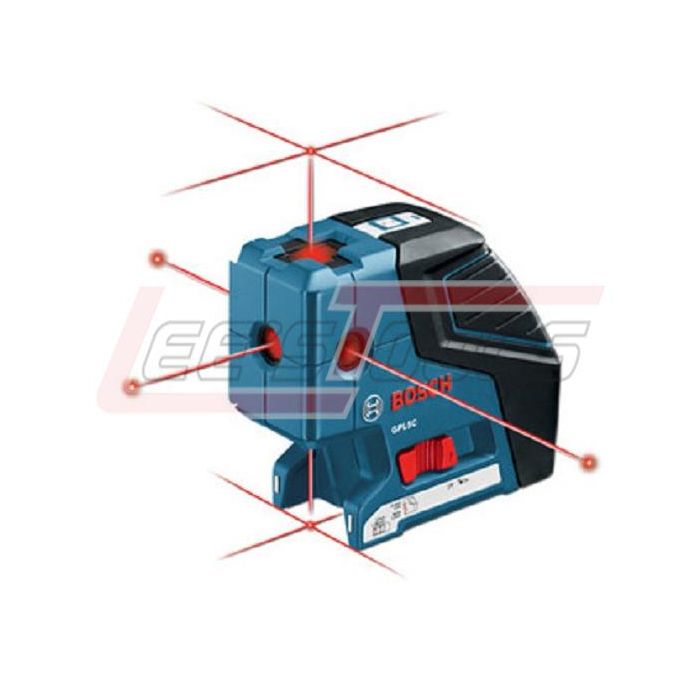

BOSCH GPL5C GPL5C 5 Point Laser W/Up and Down Cross Line

$312.19
In stock
SKU
310113

Cross Point Technology 5-Point Alignment Self-Leveling Laser

·         Cross Point Reference Lines - Provide easy single-set up track alignment on both floor and ceiling, eliminating the need of two set up points for track alignment which saves time and increases accuracy

·         Highly-Visible Laser Lines - Three diodes project all points for superior accuracy

·         Built in Magnets - For quick alignment on metal track

·         Projects Plumb, Level and Square Points - In addition to the conventional 5 laser dots for wall and partition alignment, the GPL5C offers laser cross alignment lines on floor and ceiling which eliminates the need for two set up points which saves time and increases accuracy.

·         Selection Switch - To choose between laser options of: 3 horizontal points for 90-degree alignment and leveling; up and down cross points with 90-degree horizontal point; 5 points with cross points - meets all job needs and save battery life

·         Smart Pendulum Leveling System - Self-levels, senses and indicated out-of level condition, locks when switched off

Specifications

Accuracy

Up to ±1/4-in @ 100-ft

Dimensions

4.65 x 5.7 x 2.2-in

Laser Diode

Class II 635 nm, = 1 mW

Leveling Type

Self-Leveling, Up to 4°

Mount Threading

1/4-20, 5/8-11

Operating Temperature

14° F / -10° C up to 104° F / 40° C

Range

Up to 100-ft

Service Baretool Numbers

3601k66211

Serviceable

Yes

Weight (lbs.)

1.5



Includes:

·         (1)- Belt Pouch

·         (4) -- AA 1.5V Batteries

More Information
Availability In Stock
Manufacturer BOSCH
Manufacturer Sku GPL5C
