BOSCH PR20EVSNK Palm Router w/ Variable Speed Installer Kit

$229.00
In stock
SKU
311305

Colt™ Variable-speed Palm Router Kit

·         HP (Max. Tool Output) — 5.6 Amp Motor -16,000 35,000 RPM

·         Rugged Aluminum Fixed Base — Durable, solid and precise

·         Fast & Precise Depth Adjustment System — The best depth adjustment system in its class

·         Unique Finger Support Pockets — For additional stability, especially when trimming edges

·         Enhanced Bit Capacity — Fixed Base accepts bits up to 1-5/16" in diameter

·         Softstart — Reduces start-up torque

·         Constant Response™ Circuitry — Monitors and maintains speed under load for consistent performance and provides overload protection

·         Versatile Bit-Changing System - Fast, easy bit changes using two wrenches or spindle lock and one wrench.

·         Quick-Clamp System — Allows motor to be easily adjusted or moved from base to base

·         Offset Base with Spindle Lock — Allows routing near vertical surfaces, such as when trimming laminate applied to top of countertop backsplash

·         Angled cord exit — Helps keep cord out of the way

·         Tilt Base with Detents at Key Angles — Allows routing at special angles and in hard-to-reach areas

·         Underscribe Attachment — Mounts to fixed base for creating precise seams between sheets of laminates

·         Straight Edge Guide — Guides router along edges of workpiece or up to 3-5/8" from edge

·         Roller Guide — Guides router when non-bearing bit or unpiloted bit is used

·         Variable speed dial — For matching speed to workpiece and task

Specifications

Amperage

5.6

Collet Capacity

1/4" Self-releasing

Height

7.5"

Manuals

PR10E, PR20EVSK, PR20EVSNK (EN) #18973 (D#18973)

Max. Motor HP

1 HP

No Load RPM

16,000 - 35,000

Part Diagrams

PR20EVSK, PR20EVSNK (EN) #19331 (D#19331)

Serviceable

No

Weight (lbs.)

3.3

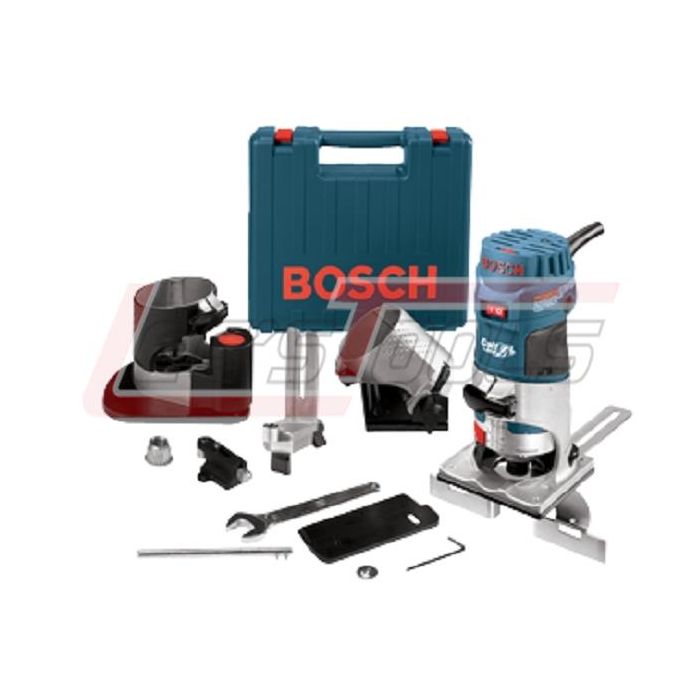

Includes:

·         (1)-- PR20EVS Motor

·         (1)- 1/4" Self-Releasing Collet Chuck - 2610008122

·         (1)- 17 mm Collet Wrench - 2609110438

·         (1)- 10 mm Shaft Wrench - 2609110786

·         (1)- Fixed Base -- PR001

·         (1)-- Straight Edge Guide -- PR002

·         (1)-- Roller Guide -- PR003

·         (1)-- Offset Base with Roller Guide -- PR004

·         (1)-- Tilt Base -- PR005

·         (1)-- Underscribe Plate with Wrenches -- PR006

·         (1)- Carrying Case

More Information
Availability In Stock
Manufacturer BOSCH
Manufacturer Sku PR20EVSNK
