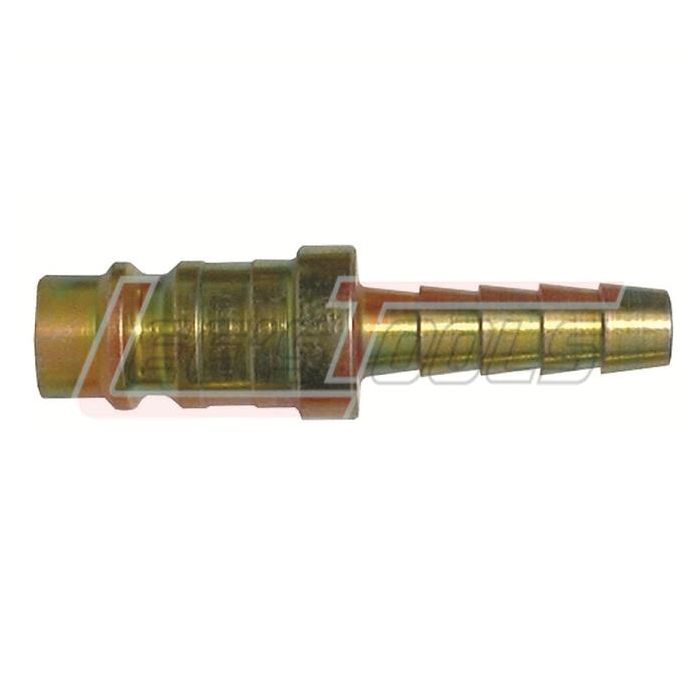

COILHOSE PNEUMATICS 1106 1/4" Megaflow Connector, 1/4" ID Hose
$12.58
Out of stock
SKU
344382
Image is for reference only! Product may
be different. Please contact us for further questions.
Couplers & Connectors
Megaflow Automatic High Flow Series
Megaflow High Flow Series is engineered to allow
twice the flow of comparably-sized standard design couplers and connectors. Ones
handed push to connet design allows easy operation. Megaflow couplers can be
used with any ”Type 15” series connectors in an emergency..
1/4 “ Body Size Connectors
(Type ll )
|
Thread & Barb Size |
Female |
Male |
Hose Barb |
|
1/4 “ |
1102 |
1101 |
1106 |
|
3/8’ |
1105 |
1103 |
1108 |
Quickly changing or connecting pneumatic air lines
is a basic function in most pneumatic systems. Over the years many styles of
couplers and connectors have been developed. The popularity of one style over
another can usually be attributed to the geographical part of the country, the
application or the specific industry. To meet this variety of needs Coilhose
Pneumatics offers a wide variety of coupler and connector products. Each series
is produced to industrial quality standards for a long life and will work with
corresponding interchanges from other manufacturers. In addition to standard
manual couplers we offer several specialty couplers that meet specific needs.
Automatic couplers allow one hand operation to connect, universal couplers can
be used with different connector styles, the Acme and Megaflow series have
larger SCFM flow capabilities in smaller body sizes and the Moldflow series are
built specifically for injection molding. With this variety, Coilhose can meet
most coupler and connector needs.
|
Series
Body Size |
Body |
Sleeve |
Locking Device |
Internal Valve |
Seals |
PSI Rating
|
Temp.
min/max |
|
|
|
Six Point Couplers Brass Brass
|
Brass |
Brass |
6 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
(All Interchange Styles, Manual, and Automatic)
|
|
|
|||||||
|
Automatic Industrial
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
3 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/8 Body Size " |
Brass
|
Brass
|
4 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
1/2 Body Size " |
Brass
|
Brass
|
5 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/4 Body size " |
Brass
|
Brass
|
6 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Manual Industrial
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
4 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/8 Body Size " |
Zinc-Plated Steel
|
Zinc-Plated Steel
|
8 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
1/2 Body Size " |
Zinc-Plated Steel
|
Zinc-Plated Steel
|
8 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Automotive Tru-Flate
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
4 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/8 Body Size " |
Zinc-Plated Steel
|
Zinc-Plated Steel
|
8 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Lincoln Series
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
3 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F
|
|
|
|
Acme interchange
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
6 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
ARO Interchange
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
4 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Megaflow Automatic
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Hardened Steel
|
5 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
220 |
(-40° to +250° F)
|
|
|
|
Moldflow Series
|
|
||||||||
|
1/4 Body Size " |
|
||||||||
|
Non-valved
|
Brass
|
Brass
|
6 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
|
Valved
|
Brass
|
Nickel-Plated Brass
|
7 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
|
3/8 Body Size " |
(-50° to +425° F)
|
|
|||||||
|
Non-valved
|
Brass
|
Brass
|
6 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
|
Valved
|
Brass
|
Nickel-Plated Brass
|
7 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | COILHOSE PNEUMATICS |
| Manufacturer Sku | 1106 |
