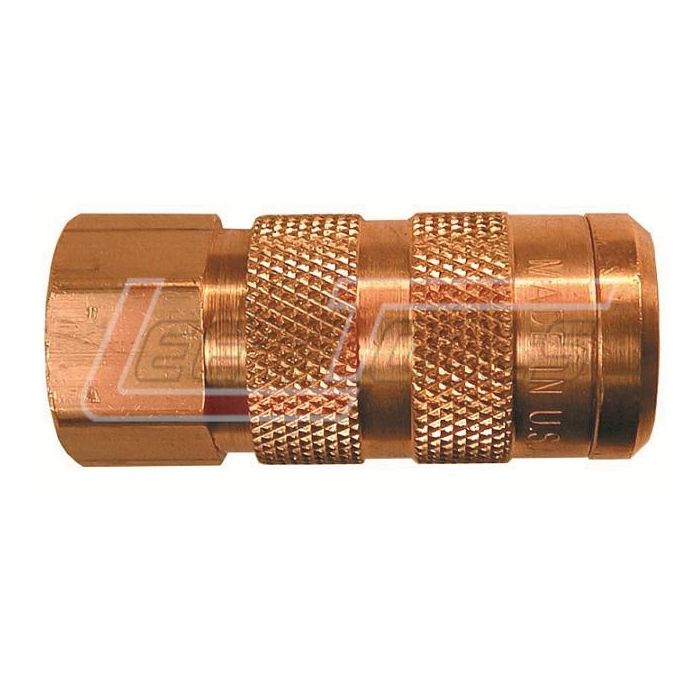

COILHOSE PNEUMATICS 14X4F 1/4" 6-Point ARO Coupler, 1/4" FPT
$9.84
Out of stock
SKU
344486
Image is for reference only! Product may
be different. Please contact us for further questions.
Couplers & Connectors
C o i l f l ow™ Six Ball Couplers
Coilflow Six Ball Interchange Couplers feature six
stainless steel locking balls to provide a more balanced and secure connection.
The locking ball diameter is sized to properly fit the connectors' form to allow
greater surface contact. This makes the connector more durable, even in
high-vibration conditions. These couplers are compatible with other
manufacturers' couplers within the same interchange series.
ARO Interchange 1/4 “ Body Size (Type 14 )
|
Thread & Barb Size |
Female |
Male |
Hose Barb |
Lock on hose Barb |
Reusable Polyurethane Hose Barb |
|
1/8" |
14X2F |
14X2M
|
n/a
|
n/a
|
n/a |
|
1/4"
|
14X4F
|
14X4M |
14X4H |
14X4L |
14X4PR |
|
5/16" |
n/a |
n/a |
14X5H
|
n/a
|
n/a |
|
3/8" |
14X6F |
14X6M
|
14X6H |
14X6L |
n/a |
Quickly changing or connecting pneumatic air lines
is a basic function in most pneumatic systems. Over the years many styles of
couplers and connectors have been developed. The popularity of one style over
another can usually be attributed to the geographical part of the country, the
application or the specific industry. To meet this variety of needs Coilhose
Pneumatics offers a wide variety of coupler and connector products. Each series
is produced to industrial quality standards for a long life and will work with
corresponding interchanges from other manufacturers. In addition to standard
manual couplers we offer several specialty couplers that meet specific needs.
Automatic couplers allow one hand operation to connect, universal couplers can
be used with different connector styles, the Acme and Megaflow series have
larger SCFM flow capabilities in smaller body sizes and the Moldflow series are
built specifically for injection molding. With this variety, Coilhose can meet
most coupler and connector needs.
|
Series
Body Size |
Body |
Sleeve |
Locking Device |
Internal Valve |
Seals |
PSI Rating
|
Temp.
min/max |
|
|
|
Six Point Couplers Brass Brass
|
Brass |
Brass |
6 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
(All Interchange Styles, Manual, and Automatic)
|
|
|
|||||||
|
Automatic Industrial
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
3 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/8 Body Size " |
Brass
|
Brass
|
4 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
1/2 Body Size " |
Brass
|
Brass
|
5 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/4 Body size " |
Brass
|
Brass
|
6 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Manual Industrial
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
4 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/8 Body Size " |
Zinc-Plated Steel
|
Zinc-Plated Steel
|
8 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
1/2 Body Size " |
Zinc-Plated Steel
|
Zinc-Plated Steel
|
8 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Automotive Tru-Flate
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
4 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
3/8 Body Size " |
Zinc-Plated Steel
|
Zinc-Plated Steel
|
8 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Lincoln Series
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
3 Pawls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F
|
|
|
|
Acme interchange
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
6 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
ARO Interchange
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Brass
|
4 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
300 |
(-40° to +250° F)
|
|
|
|
Megaflow Automatic
|
|
||||||||
|
1/4 Body Size " |
Brass
|
Hardened Steel
|
5 Stainless Balls
|
Zinc-Plated Steel
|
Nitrile (Buna N)
|
220 |
(-40° to +250° F)
|
|
|
|
Moldflow Series
|
|
||||||||
|
1/4 Body Size " |
|
||||||||
|
Non-valved
|
Brass
|
Brass
|
6 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
|
Valved
|
Brass
|
Nickel-Plated Brass
|
7 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
|
3/8 Body Size " |
(-50° to +425° F)
|
|
|||||||
|
Non-valved
|
Brass
|
Brass
|
6 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
|
Valved
|
Brass
|
Nickel-Plated Brass
|
7 Stainless Balls
|
Brass
|
Silicone
|
250 |
(-50° to +425° F)
|
|
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | COILHOSE PNEUMATICS |
| Manufacturer Sku | 14X4F |
