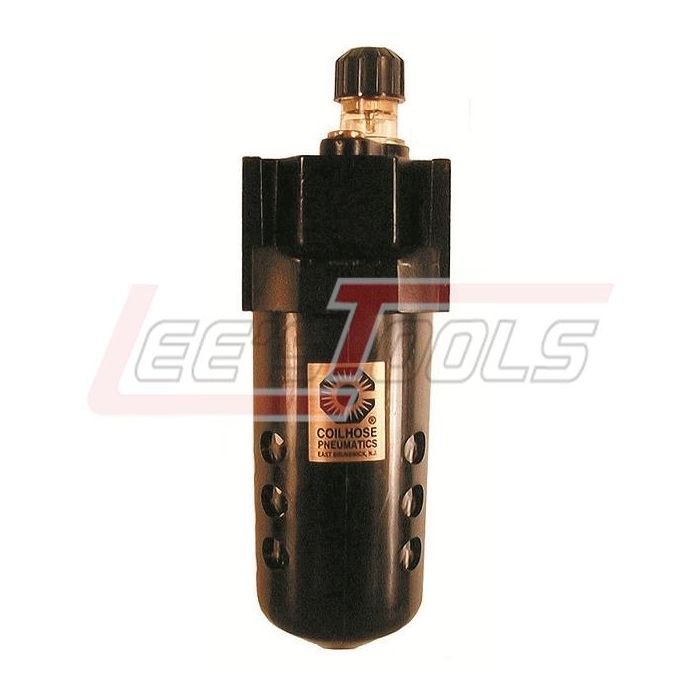

COILHOSE PNEUMATICS 27L4 1/2" NPT Lubricator

Image is for reference only! Product may be different. Please contact us for further questions.

27 Modular Series Lubricators

27 Modular Series Lubricators are engineered to provide exceptional installation flexibility. They are constructed of diecast aluminum and have a tamperproof adjustment cap. These units feature proportional air-to-oil delivery, ensuring even distribution of lubricant. The 27 Series Lubricator comes standard with a bowl guard.

Specifications

Maximum Supply Pressure:

Plastic Bowl: . . . . . . . .150 PSI

Metal Bowl: . . . . . . . .250 PSI

Materials:

Plastic Bowl: . . . . . . .Polycarbonate

Metal Bowl: . . . . . . . .Zinc Die Cast

Body: . . . . . . . . . . . . .Die Cast Aluminum

Height: . . . . . . . . . . . . . . .8"

Weight: . . . . . . . . . . . . . .1 lb.

Maximum Diameter: . . . .2 3/4"

Bowl Capacity: . . . . . . . . .8.5 oz.

Features

·         Once oil delivery rate is set, proportional oil-to-air delivery rate assures even lubrication at all times.

·         Tamperproof cap allows oil delivery rate to be locked in place.

·         Unit refills through fill port without requiring depressurization.

·         Quick fill plug available for use with quick fill equipment.

Supply Pressure Drop

Supply                  Pressure Drop

Pressure              1 2 3 4 5

3/8" at 25 PSI     10 20 23 30 38

1/2" at 25 PSI     20 35 55 65 77

3/8" at 100 PSI   19 30 40 52 62

1/2" at 100 PSI   30 60 90 122 160

SCFM

Note: All values are approximate.

WARNING: Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to certain cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
