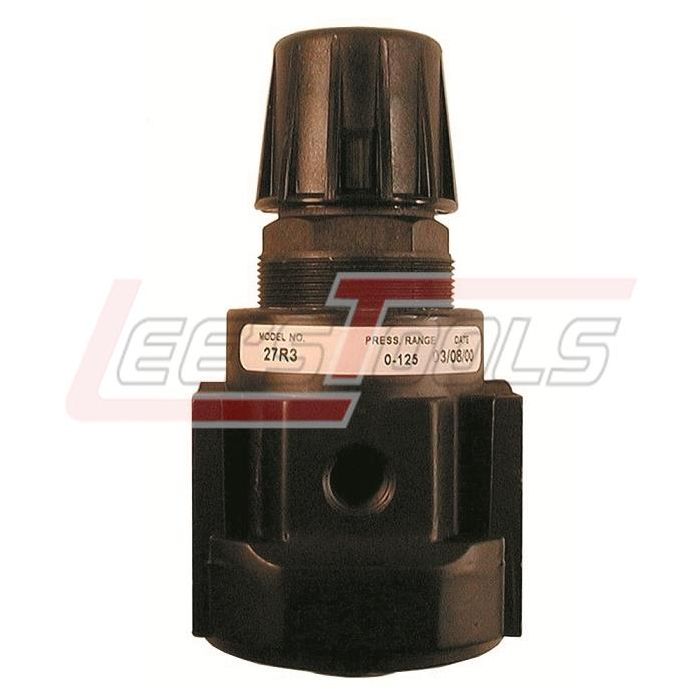

COILHOSE PNEUMATICS 27R3 3/8" NPT Regulator

Image is for reference only! Product may be different. Please contact us for further questions.

27 Modular Series Regullators

The 27 Series Regulators are engineered for exceptional installation flexibility. These units have a 1/2" body for higher flow rates and are constructed of die-cast aluminum with a non-rising adjusting knob. These Regulators can be connected to other 27 Series units using modular clamps or pipe nipples and can be individually connected to an airline using a panel mount bracket.

Specifications

Maximum Supply Pressure: 250 PSI

Maximum Operating Temp.: 250° F

Materials:

Adjusting Knob: . . . . . .High Impact

Body: . . . . . . . . . . . . . .Die Cast

Height: . . . . . . . . . . . . . . . .5 1/2"

Maximum Diameter: . . . . . .2 3/4"

Bowl Capacity: . . . . . . . . . .1 3/4 lbs.

Regulator Pressure Ranges:

0-200 - Optional

0-125 - Standard

0-60 - Optional

0-25 – Optional

Features

·         1/4" inch gauge ports can be used as secondary outlet ports.

·         Balanced poppet valve design assures superior performance.

·         0-250 PSI, 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges.

·         Self relieving feature prevents excessive pressure build-up.

·         Locking adjustment knob.

·         Panel mount and gauge options available.

Supply Pressure Drop

Supply 100 PSI                   Pressure Drop

Regulated Pressure        5              10           20

3/8" at 25 PSI                     20           70           80

1/2" at 25 PSI                     20           80           120

3/8" at 50 PSI                     20          40           100

1/2" at 50 PSI                     20           40           120

3/8" at 75 PSI                     10           20           100

1/2" at 75 PSI                     10           20          120

SCFM

Note: All values are approximate.

WARNING: Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to certain cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
