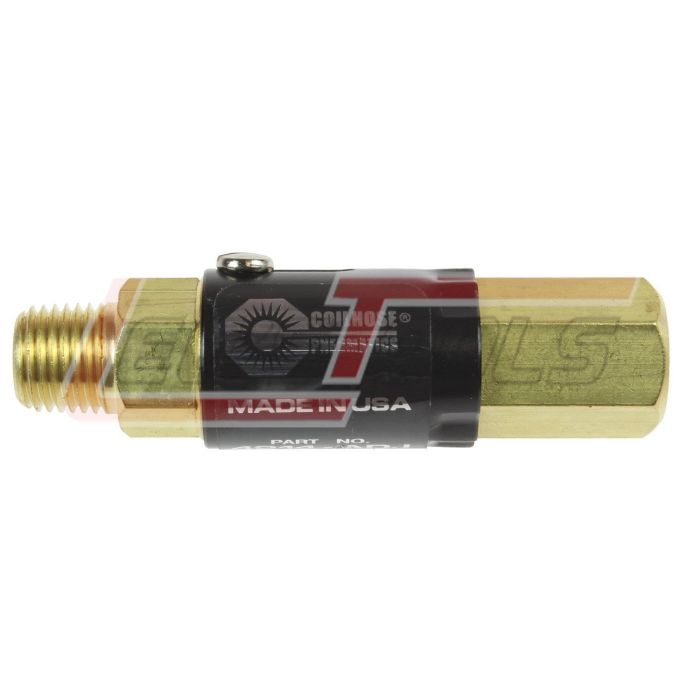

COILHOSE PNEUMATICS 4214-ADJ 1/4" In-Line Adjustable Regulator

Image is for reference only! Product may be different. Please contact us for further questions.

Adjustable In Line Pressure Regulatords

The Adjustable In-Line Pressure Regulators allows the user to select desired pressure and lock the setting in place.

Specification

•        Maximum Supply Pressure: 150 PSI

•        Operating Pressure Range: 50 - 145 PSI

•        Maximum Operating Temp.: 175° F

•        Material:  Anodized Aluminum

•        Accuracy: +/- 2.5 PSI at 125 PSI

•        Item 4214-ADJ (1/4" NPT)

•        Dimensions and Weights:

•        Length:. 2.88"

•        Diameter: 0.88"

•        Weight: 3 oz.

•        Item 4238-ADJ (3/8" NPT)

Dimensions and Weights:

•        Length: 3.75"

•        Diameter: 1.12"

•        Weight: 4 oz.

Features

•        Available in 1/4" and 3/8" body sizes.

•        Adjustable pressure setting allows custom setting for various tools or applications.

•        Compact size is lightweight and is designed to be part of the tool.

•        In port screen helps filter out harmful debris.

Note: Not recommended for high volume air tools. For use with nailers, staplers, and other intermittent air tools.
