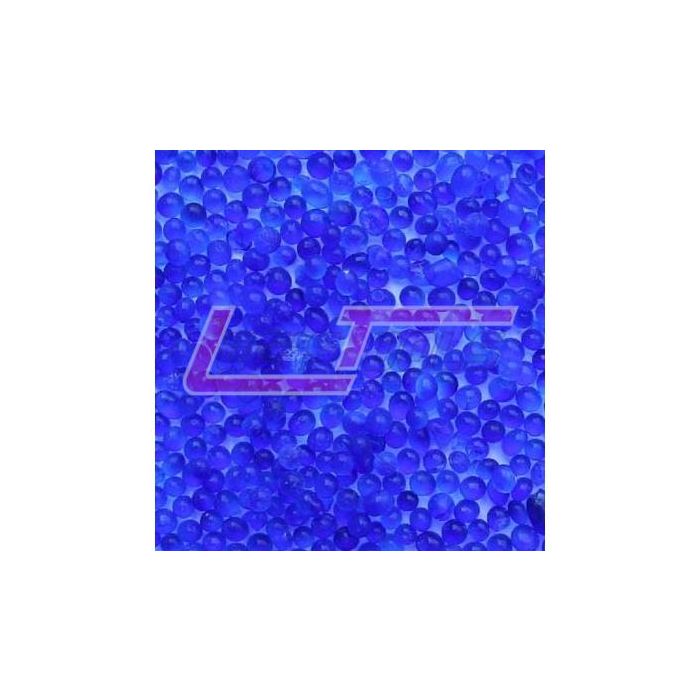

COILHOSE PNEUMATICS 8422-GEL Desiccant Gel Refill

Image is for reference only! Product may be different. Please contact us for further questions.

Desiccant Air Dryers

The Desiccant Air Dryers collect the smallest moisture mists. Use of standard air filters and coalescing filters is highly recommended to achieve exceptionally dry air. Desiccant beads change color from blue to pink to indicate absorbing capacity (blue = dry, pink = wet). Beads in standard version are also  reusable.

Features

·         Pressure drop of less than 1 PSI.

·         No additional power source required.

·         Standard version is easy to service. In-Line version is disposable.

Specifications

STANDARD IN-LINE

Max. Supply Pressure: . . . . . . . . . . . . . . . . . .150 PSI. . . . . . . . . . . . . . . . . 125 PSI

Max. Operating Temp.: . . . . . . . . . . . . . . . . . .125° F . . . . . . . . . . . . . . . . . . 130° F

Max. Flow Capacity: . . . . . . . . . . . . . . . . . . . .10 SCFM . . . . . . . . . . . . . . . 15 SCFM

Materials:

Body: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Zinc Die Cast. . . . . . . . . . . . Polycarbonate

Bowl: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Polycarbonate. . . . . . . . . . . Polycarbonate

Bowl Guard: . . . . . . . . . . . . . . . . . . . . . . . . .Steel . . . . . . . . . . . . . . . . . . . Nylon

Dimensions and Weights:

Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12.25" . . . . . . . . . . . . . . . . . . 3 3/4"

Width (port to port): . . . . . . . . . . . . . . . . . . .4.5" . . . . . . . . . . . . . . . . . . . . 1 11/16"

Weight (with desiccant): . . . . . . . . . . . . . . . .6.8 lbs. . . . . . . . . . . . . . . . . . 2.8 oz.
