COILHOSE PNEUMATICS 8802 1/4" Regulator

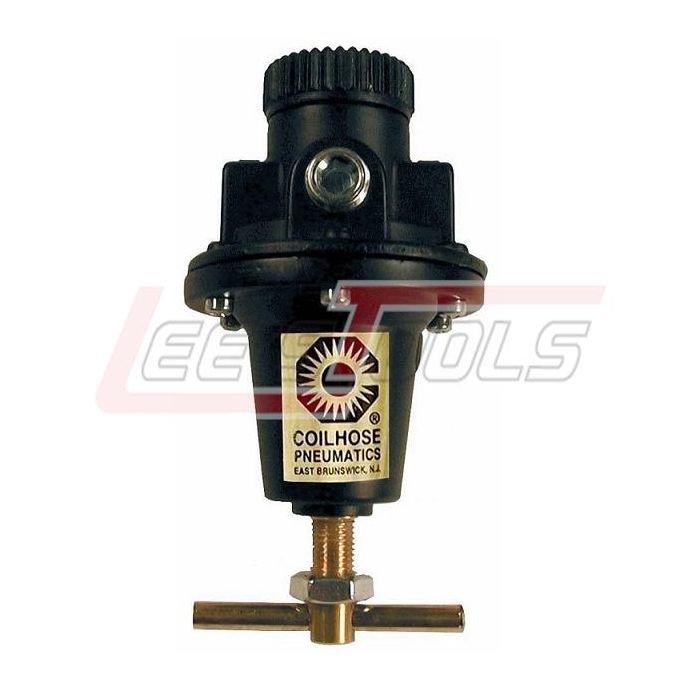

Image is for reference only! Product may be different. Please contact us for further questions.

Heavy Duty Series Regulators

The Heavy Duty Series Regulators have a long established reputation for high quality and unsurpassed reliability. Their balanced design maintains precise downstream pressure, and a diaphragm stop prevents ruptures in the event of surges. Master packaging is twenty-four units per carton for 1/4" and 3/8" sizes, twelve units per carton for 1/2" size and six units per carton for 3/4" and 1" sizes.

Specifications

Maximum Supply Pressure: . . . . .250 PSI

Maximum Temperature: . . . . . . . .250º F

Materials:

Body: . . . . . . . . . . . . . . . . . . .Die Cast

Aluminum

Bowl

Size Height Diam. Capacity Weight

1/4 & 3/8 . .5 1/2" . . .3" . . . .4 oz. . . . .3/4 lbs.

1/2 . . . . . . .7" . . . . . .4" . . . .8 oz. . . . .1 1/2 lbs.

3/4 & 1 . . . .8 1/2" . . .5" . . . .23 oz. . . .3 lbs.

Regulator Pressure Ranges:

0-125 - Standard

0-60 - Optional

0-200 – Optional

Features

·         High flow rates with accurate control and fast response.

·         0-200 PSI, 0-125 PSI and 0-50 PSI pressure ranges.

·         Tamperproof option available.

·         Panel mount and gauge options.

Supply

Supply 100 PSI   Pressure Drop

Regulated Pressure        2 5 10

1/4" at 80 PSI     10 30 40

3/8" at 80 PSI     10 30 40

1/2" at 80 PSI     20 60 80

3/4" at 80 PSI     40 120 160

1" at 80 PSI          40 120 160

SCFM

Note: All values are approximate.
