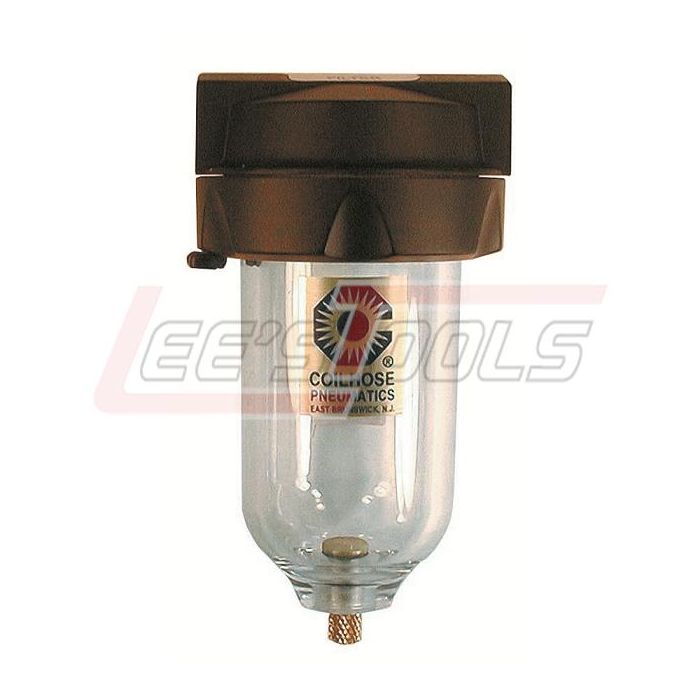

COILHOSE PNEUMATICS 8824 1/2" Air Line Filter

Image is for reference only! Product may be different. Please contact us for further questions.

Heavy Duty Series Filter

The Heavy Duty Series Filters have a long-established reputation for high quality and reliability. This series continues to provide time proven value with a 1/4" to 1" size range, die cast aluminum bodies, extra large filter elements, easy maintenance and design consistency.

Specifications

Maximum Supply Pressure:

·         Plastic Bowl: . . . . . . . .150 PSI

·         Metal Bowl: . . . . . . . . .250 PSI

Maximum Operating Temp.:

·         Plastic Bowl: . . . . . . . .120° F

·         Metal Bowl: . . . . . . . . .250° F

Filter Element:

·         Standard: . . . . . . . . . . .40 Micron

·         Optional: . . . . . . . . . . .20 & 12 Micron

Materials:

·         Plastic Bowl: . . . . . . . .Polycarbonate

·         Metal Bowl: . . . . . . . .Aluminum

·         Body: . . . . . . . . . . . . .Die Cast Aluminum

·         Filter Element: . . . . . .Sintered Bronze

·         Bowl

Size Height Diameter Capacity Weight

·         4 & 3/8 . . .6" . . . . 3" . . . . . . .4 oz. . . .3/4 lbs.

·         2 . . . . . . . .7" . . . . 3 1/2" . . .8 oz. . . .1 lbs.

·         4 & 1 . . . .9" . . . . 5" . . . . . . .23 oz. . .4 lbs.

Features

·         Large 40, 20 or 12 micron sintered bronze elements.

·         Bayonet locking ring allows easy bowl removal by hand.

·         Hi-strength plastic bowls supplied standard.

·         Bowl guards supplied standard on 3/4" and 1" sizes. Optional on 1/4", 3/8" and 1/2" sizes.

·         Automatic drains available.

Options

Options                Suffix

Automatic Drain               D

20 Micron Element          F

12 Micron Element          X

Metal Bowl With Sightglass          M

Bowl Guard        R

(for 1/4", 3/8" and 1/2" unit)

Options are indicated by adding a dash followed by the corresponding suffix(es) in alphabetical order to the model number.

Supply                  Pressure Drop

Pressure              1 2 3 4 5

1/4" at 80 PSI     25 35 42 50 55

3/8" at 80 PSI     25 35 42 50 55

1/2" at 80 PSI     38 61 80 95 108

3/4" at 80 PSI     119 160 200 240 260

1" at 80 PSI          119 160 200 240 260

SCFM

Note: All values are approximate.

WARNING: Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
