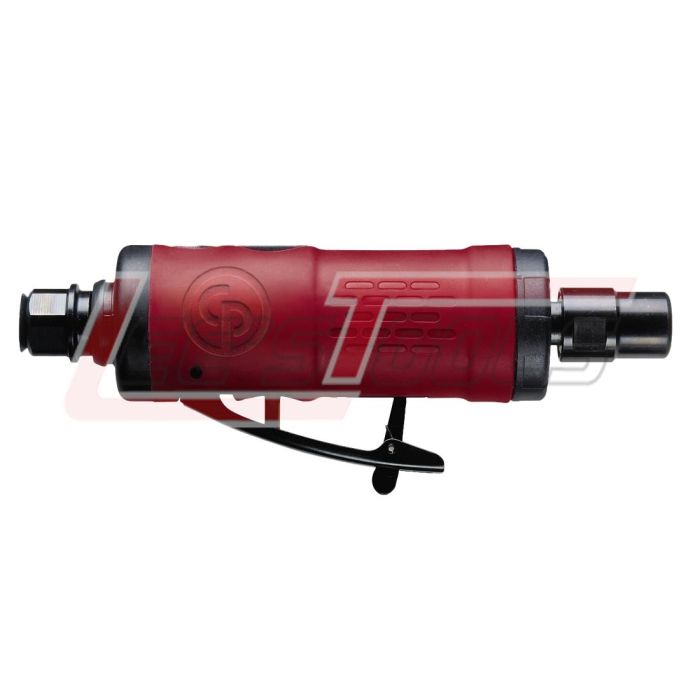

CP - CHICAGO PNEUMATIC 6151952105 CP9105QB 1/4" DIE GRINDER
$0.00
Out of stock
SKU
2085909
CP9105Q-B
Features
·
General Maintenance Applications die grinder
·
High operator comfort
·
Power and performance
·
Ideal for limited space applications
·
Rubber overmould grip
·
Swivel air inlet
·
Built-in air regulator
·
0.32 hp (240W) motor
·
28,000 rpm
·
free speed
·
Low noise level: only 81 dB(A)
·
Rear exhaust
·
Includes 1/4" and 6 mm collets
Technical Description
|
Part number |
6151952105 |
|
|
Model |
CP9105Q-B |
|
|
Collet size |
6.35 mm |
1/4" |
|
VSTFreeSpeed_rpm |
28000 rpm |
|
|
Free speed |
28000 rpm |
|
|
Power |
240 W |
0.3 hp |
|
Rear exhaust |
Rear exhaust |
|
|
Length |
160 mm |
6.3" |
|
Net weight |
0.4 kg |
0.8 lb |
|
Noise level |
80 db(A) |
|
|
Sound Power |
91 db(A) |
|
|
Vibration
(ISO-8662-13) |
6.2 m/s² |
|
|
Vibration a
(ISO-20643) |
3.6 m/s² |
|
|
Vibration K
(ISO-20643) |
2 m/s² |
|
|
Average air
consumption |
2.02830188679245 l/s |
4.3 cfm |
|
Average air
consumption |
121.698113207547 l/mn |
4.3 cfm |
|
Actual air
consumption |
4.1 l/s |
8.692 cfm |
|
Actual air
consumption |
243.396226415094 l/mn |
8.692 cfm |
|
Free speed
air consumption |
9.3 l/s |
19.7 cfm |
|
Min. hose
size |
10 mm |
3/8" |
|
Air inlet
thread size |
0.25 " |
|
| Availability | Out of Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | 6151952105 |
