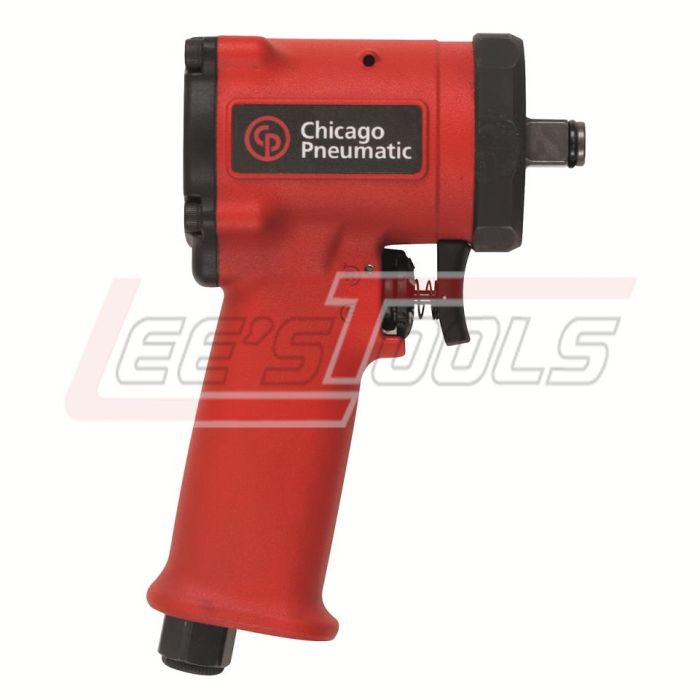

CP - CHICAGO PNEUMATIC 8941077320 CP7732 1/2" STUBBY IMPACT WRENCH
$184.93
In stock
SKU
2085819
CP7732 - Ultra Compact & Powerful
Features
·
Best power to weight ratio: 450 ft-lbs / 610 Nm
·
Ultra compact
·
Easy to use
·
Durable
·
Steel front cover & Aluminum body
·
One hand operation forward – reverse by either left or right handed users
·
3
setting positions
·
Length: 4.4'' = 112 mm as can size
·
Jumbo hammer
Technical Description
|
Part
number |
8941077320
|
|
|
Model |
CP7732 |
|
|
Handle
type |
Pistol |
|
|
Square
drive |
1/2" |
|
|
Working
Torque Range (fwd) |
138-420
Nm |
102-310
|
|
Maximum
Torque (reverse) |
610 Nm |
450
ft.lbs |
|
Free
speed |
9000 rpm |
|
|
Blows
per minute |
1400 |
|
|
Net
weight |
1.3 kg |
2.9 lb |
|
Length |
112 mm |
4.4" |
|
Side to
center |
25 mm |
1" |
|
Average
air consumption |
2.4 l/s |
5 cfm |
|
Actual
air consumption |
9 l/s |
19.6 cfm |
|
Air
inlet thread size |
0.25 " |
|
|
Min.
hose size |
10 mm |
3/8" |
|
Noise
level |
95 db(A) |
|
|
Sound
Power |
106
db(A) |
|
|
Vibration a (ISO-28927-2) |
12.1
m/s² |
|
|
Vibration K (ISO-28927-2) |
4.4 m/s² |
|
|
Socket
retainer |
Friction
ring |
|
|
Clutch
type |
Single
dog clutch |
|
| Availability | In Stock |
|---|---|
| Manufacturer | CP - CHICAGO PNEUMATIC |
| Manufacturer Sku | 8941077320 |
